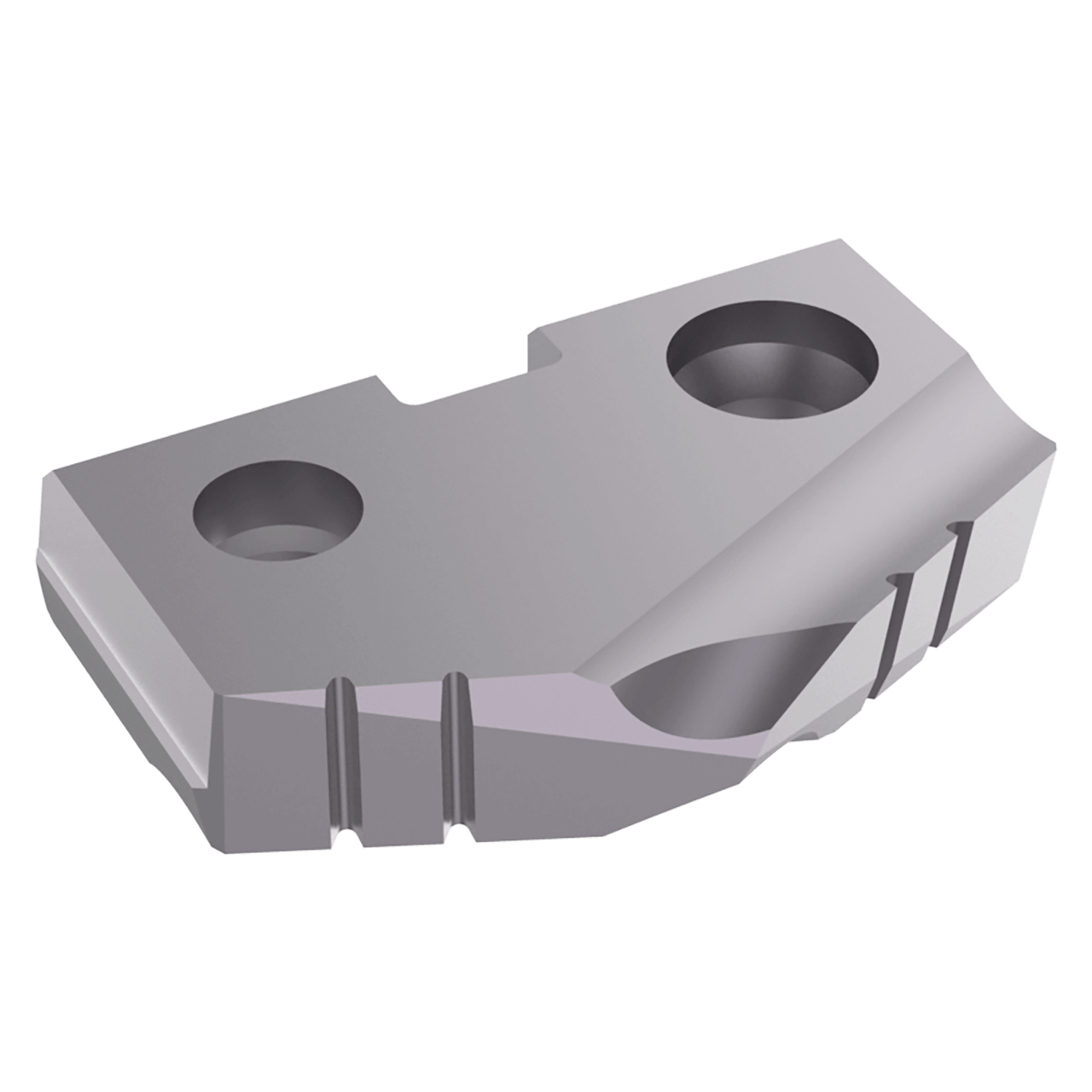

Allied Machine and Engineering 132A-0111 | 1-11/32" Diameter x 3/16" Thickness 132 Degree Included Angle TiAlN Coated High Speed Steel 2 Series Spade Drill Insert

$43.23
interval quantity:
2
SKU:
23041072
Weight:
0.03 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

Original T-A is an excellent choice for general purpose use. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient and stable cutting action to minimize power consumption.

Features:

  • Corner clip allows for effective heat dispersion and increased tool life
  • Ground back location ensures accurate positioning
  • Self-centering point eliminates center drilling
  • Web thin reduces thrust and increases point strength allowing greater reliability

Product Specifications
# MFG132A-0111
Diameter (Inch)1-11/32"
Diameter (Decimal Inch)1.3438"
Diameter (mm)34.13mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
Series2
Included Angle (Degree)132 Degree
CoatingTiAlN
MaterialHigh Speed Steel
