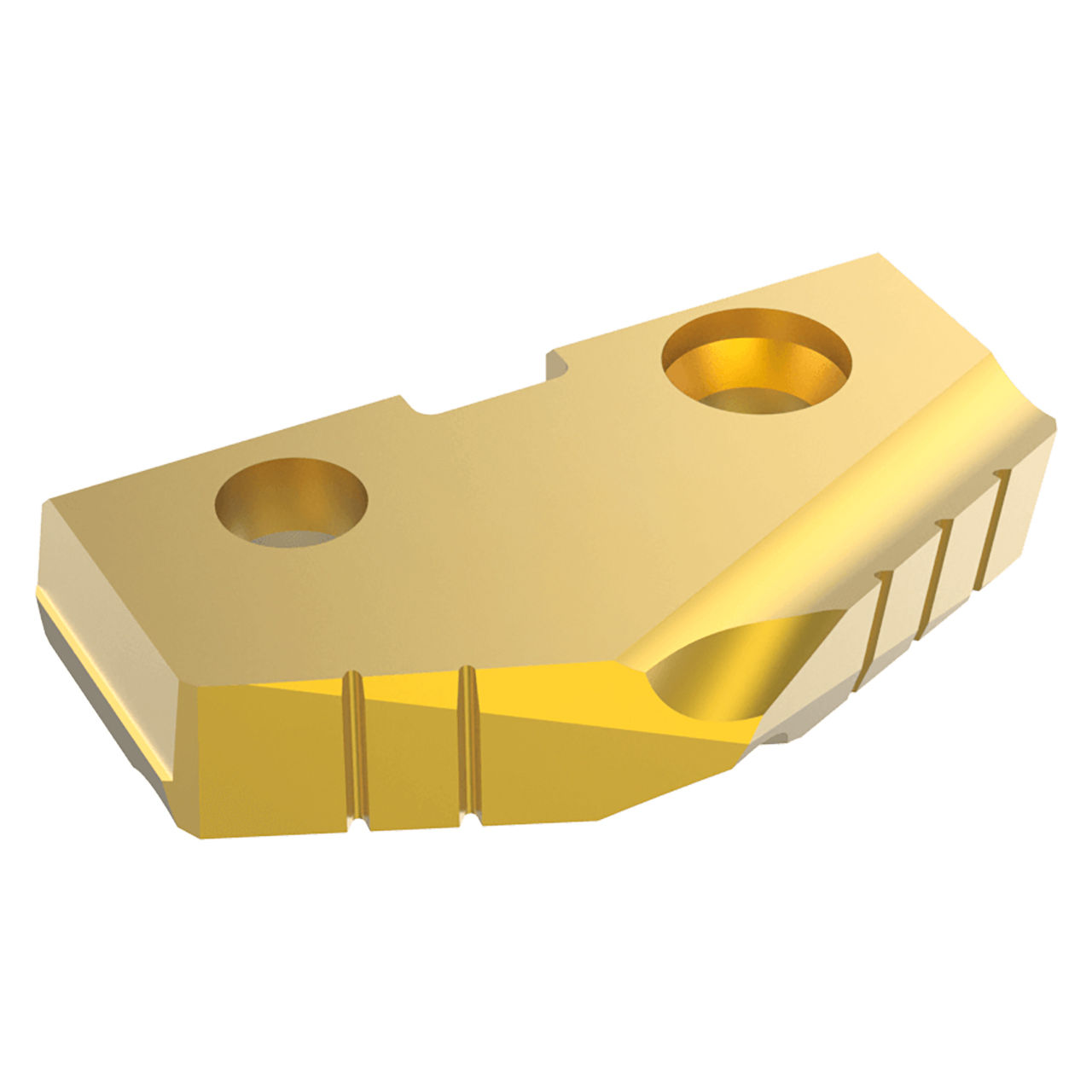

Allied Machine and Engineering 153T-0128 | 1-7/8" Diameter x 1/4" Thickness 132 Degree Included Angle TiN Coated Super Cobalt 3 Series Spade Drill Insert

$50.83
interval quantity:
1
SKU:
23040093
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Original T-A is an excellent choice for general purpose use. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient and stable cutting action to minimize power consumption.

Features:

  • Corner clip allows for effective heat dispersion and increased tool life
  • Ground back location ensures accurate positioning
  • Self-centering point eliminates center drilling
  • Web thin reduces thrust and increases point strength allowing greater reliability

Product Specifications
# MFG153T-0128
Diameter (Inch)1-7/8"
Diameter (Decimal Inch)1.8750"
Diameter (mm)47.63mm
Thickness (Inch)1/4"
Thickness (mm)6.35
Series3
Included Angle (Degree)132 Degree
CoatingTiN
MaterialSuper Cobalt
