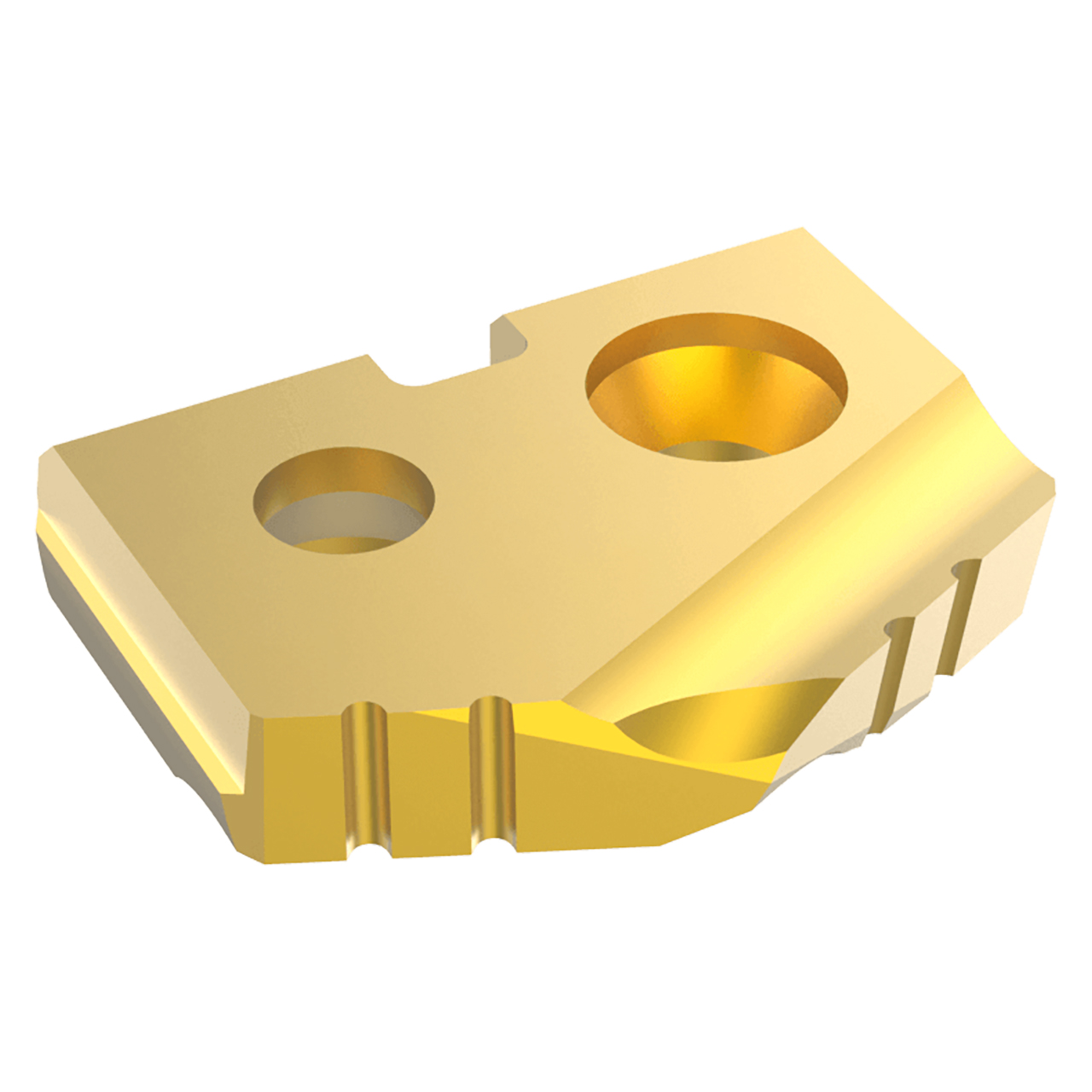

Allied Machine and Engineering 18ZT-0014 | 7/16" Diameter x 3/32" Thickness 132 Degree Included Angle TiN Coated Premium Cobalt Z Series Spade Drill Insert

$31.11
interval quantity:
2
SKU:
23039487
Weight:
1.23 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout

Original T-A is an excellent choice for general purpose use. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient and stable cutting action to minimize power consumption.

Features:

  • Corner clip allows for effective heat dispersion and increased tool life
  • Ground back location ensures accurate positioning
  • Self-centering point eliminates center drilling
  • Web thin reduces thrust and increases point strength allowing greater reliability

Product Specifications
# MFG18ZT-0014
Diameter (Inch)7/16"
Diameter (Decimal Inch)0.4375"
Diameter (mm)11.11mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
SeriesZ
Included Angle (Degree)132 Degree
CoatingTiN
MaterialPremium Cobalt
