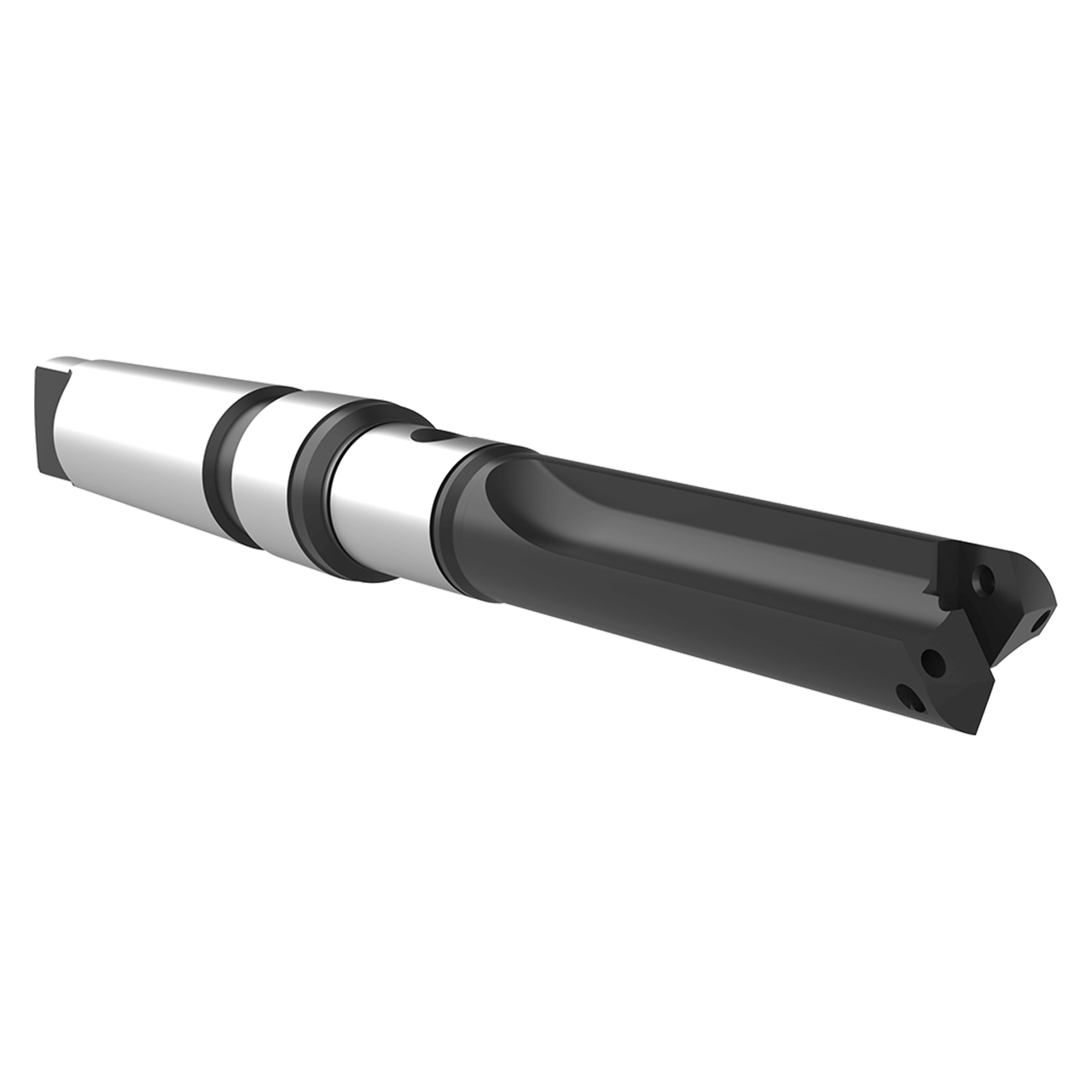

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 22020S-004M |
| Body Length (mm) | 114.3mm |
| Drill Depth (mm) | 85.7mm |
| Flute Type | Straight |
| Length Type | Short |
| Maximum Diameter (mm) | 35mm |
| Minimum Diameter (mm) | 25" |
| Overall length (mm) | 273.8mm |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 2 |
| Shank Diameter (mm) | #4 MT (ISO) |
| Shank Type | Morse Taper |
| Tool Reference Length (mm) | 160.4mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
2
Minimum Drill Diameter (Inch):
63/64"
Minimum Drill Diameter (Decimal Inch):
0.9800"
Minimum Drill Diameter (mm):
25.00mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3800"
Maximum Drill Diameter (mm):
35.00mm
Shank Type:
Morse Taper
Shank Diameter (mm):
#4 MT (ISO)
Flute Type:
Straight
