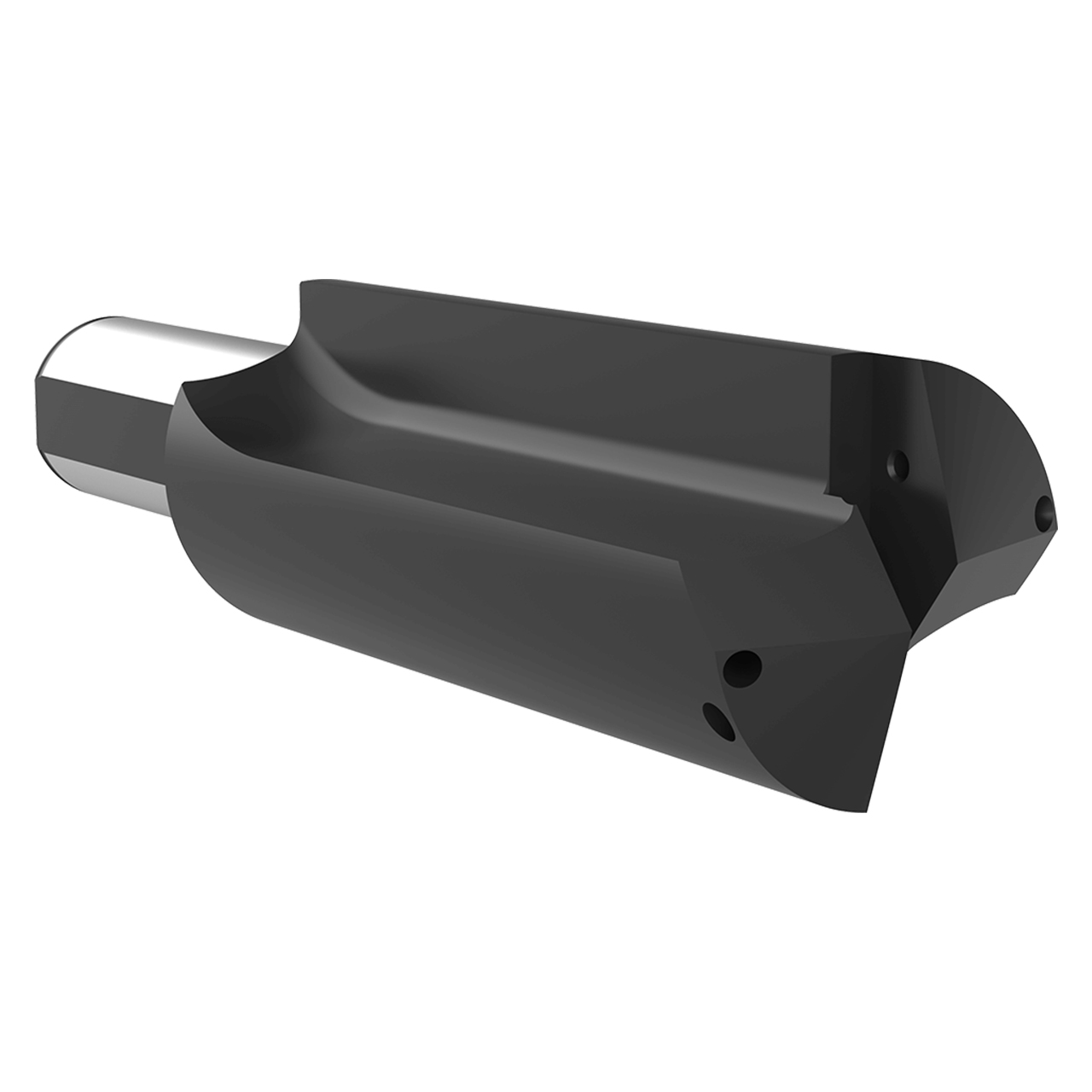

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 22070S-50FM |
| Body Length (mm) | 225.4mm |
| Drill Depth (mm) | 172mm |
| Flute Type | Straight |
| Length Type | Short |
| Maximum Diameter (mm) | 114mm |
| Minimum Diameter (mm) | 90" |
| Overall length (mm) | 311.8mm |
| Pipe Tap Rear (Inch) | 1/2" |
| Series | 7 |
| Shank Diameter (mm) | 50mm |
| Shank Length (mm) | 80mm |
| Shank Type | Flanged |
| Tool Reference Length (mm) | 231.8mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
7
Minimum Drill Diameter (Inch):
3-35/64"
Minimum Drill Diameter (Decimal Inch):
3.5400"
Minimum Drill Diameter (mm):
90.00mm
Maximum Drill Diameter (Inch):
4-31/64"
Maximum Drill Diameter (Decimal Inch):
4.4900"
Maximum Drill Diameter (mm):
114.00mm
Shank Type:
Flanged
Flute Type:
Straight
