Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications

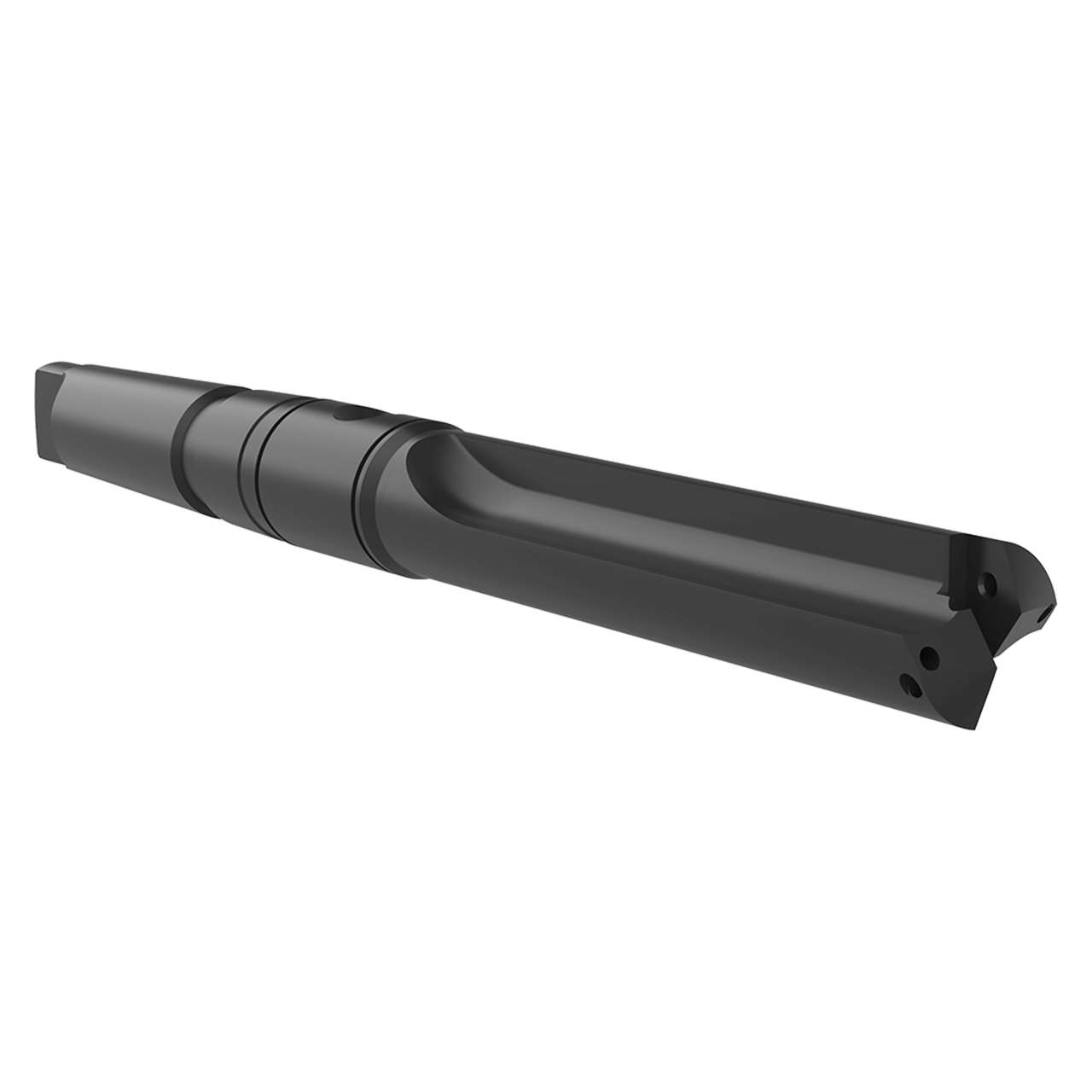

| # MFG | 23025S-004I |
| Body Length (Inch) | 6-1/2" |
| Drill Depth (Inch) | 5-3/8" |
| Flute Type | Straight |
| Length Type | Intermediate |
| Maximum Diameter (Inch) | 1-3/8" |
| Minimum Diameter (Inch) | 1-3/16" |
| Overall length (Inch) | 13-1/16" |
| Pipe Tap Side (Inch) | 1/4" |
| Series | 2.5 |
| Shank Diameter (Inch) | #4 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 8-37/64" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
