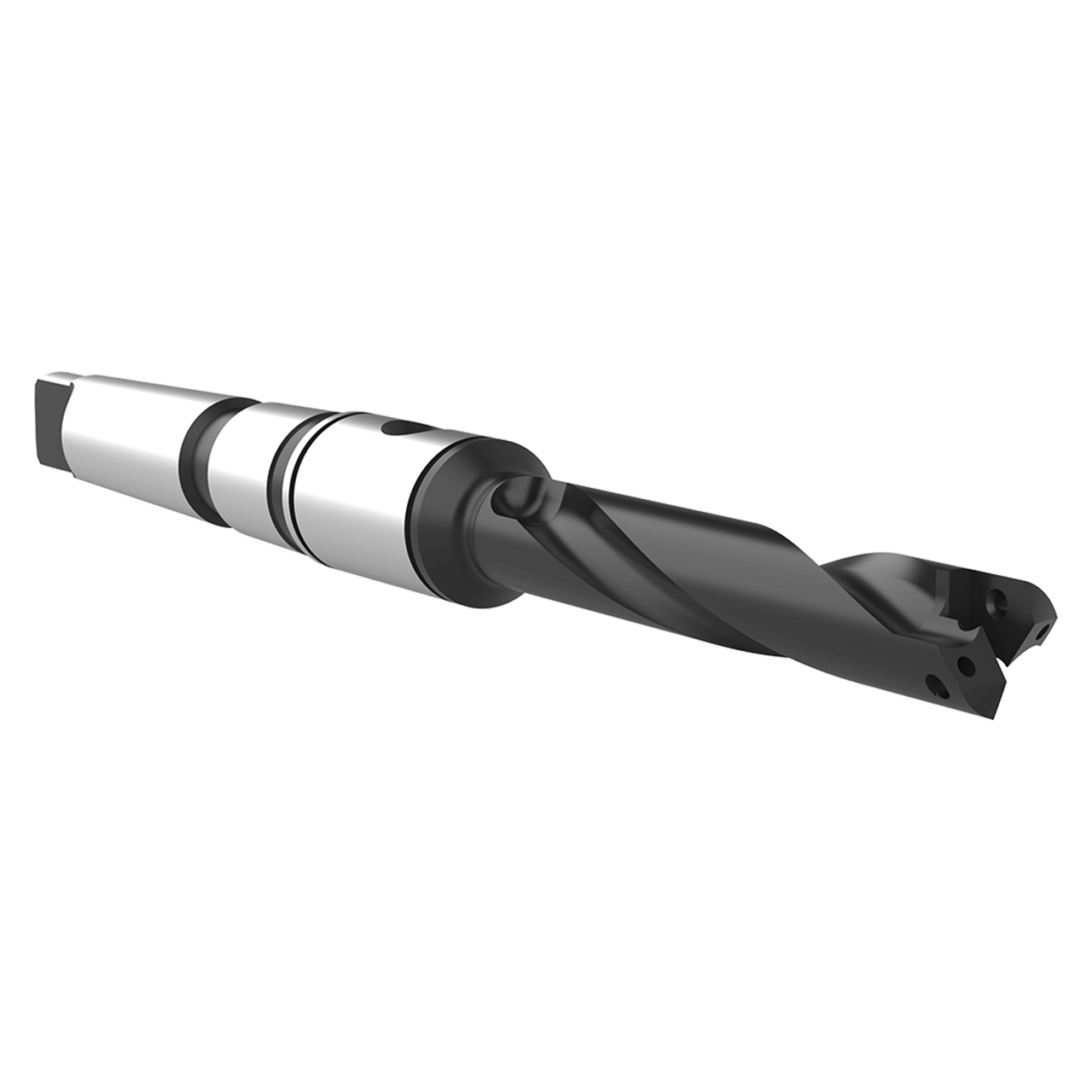

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24000H-002M |
| Body Length (mm) | 84.1mm |
| Drill Depth (mm) | 63.5mm |
| Flute Type | Helical |
| Length Type | Standard |
| Maximum Diameter (mm) | 17.5mm |
| Minimum Diameter (mm) | 13" |
| Overall length (mm) | 192.9mm |
| Pipe Tap Side (Inch) | 1/16" |
| Series | 0 |
| Shank Diameter (mm) | #2 MT (ISO) |
| Shank Type | Morse Taper |
| Tool Reference Length (mm) | 121.00mm |
