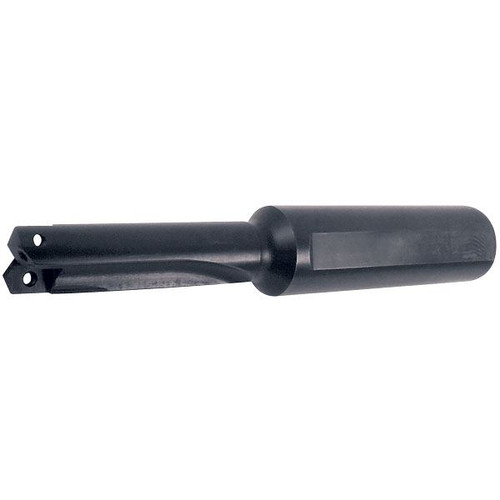

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24025S-100L |
| Body Length (Inch) | 8-1/2" |
| Drill Depth (Inch) | 7-3/8" |
| Flute Type | Straight |
| Length Type | Standard |
| Maximum Diameter (Inch) | 1-3/8" |
| Minimum Diameter (Inch) | 1-3/16" |
| Overall length (Inch) | 12" |
| Pipe Tap Rear (Inch) | 1/8" |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 2.5 |
| Shank Diameter (Inch) | 1" |
| Shank Length (Inch) | 3-1/2" |
| Shank Type | Lathe |
| Tool Reference Length (Inch) | 8-41/64" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
2.5
Minimum Drill Diameter (Inch):
1-3/16"
Minimum Drill Diameter (Decimal Inch):
1.1900"
Minimum Drill Diameter (mm):
30.16mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3800"
Maximum Drill Diameter (mm):
34.93mm
Shank Type:
Lathe
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
12"
Overall Length (Decimal Inch):
12.0000"
Overall Length (mm):
304.80mm
Flute Type:
Straight
