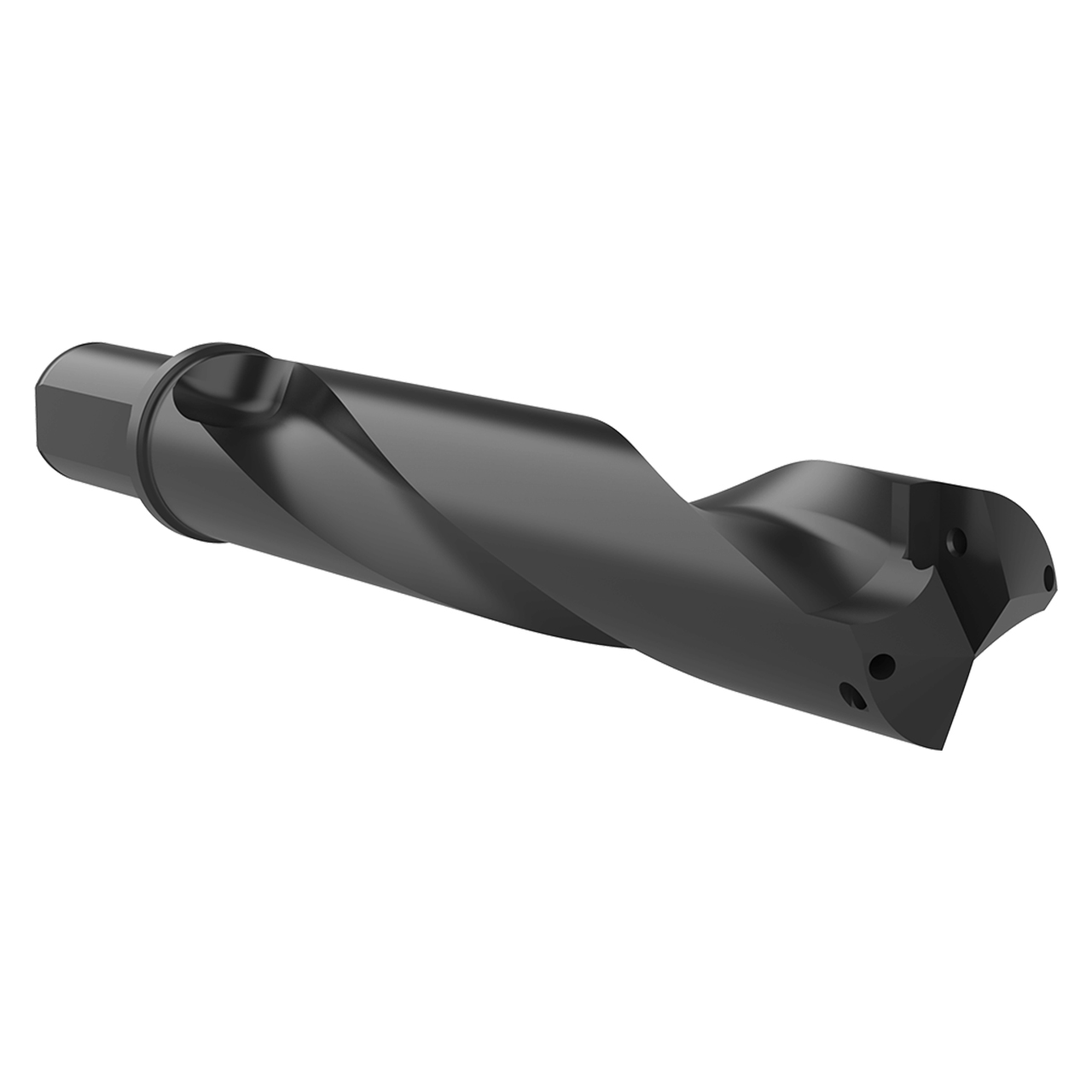

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24040H-150F |
| Body Length (Inch) | 11-1/16" |
| Drill Depth (Inch) | 9-1/8" |
| Flute Type | Helical |
| Length Type | Standard |
| Maximum Diameter (Inch) | 2-9/16" |
| Minimum Diameter (Inch) | 1-29/32" |
| Overall length (Inch) | 13-3/4" |
| Pipe Tap Rear (Inch) | 1/4" |
| Series | 4 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Length (Inch) | 2-11/16" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 11-1/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
