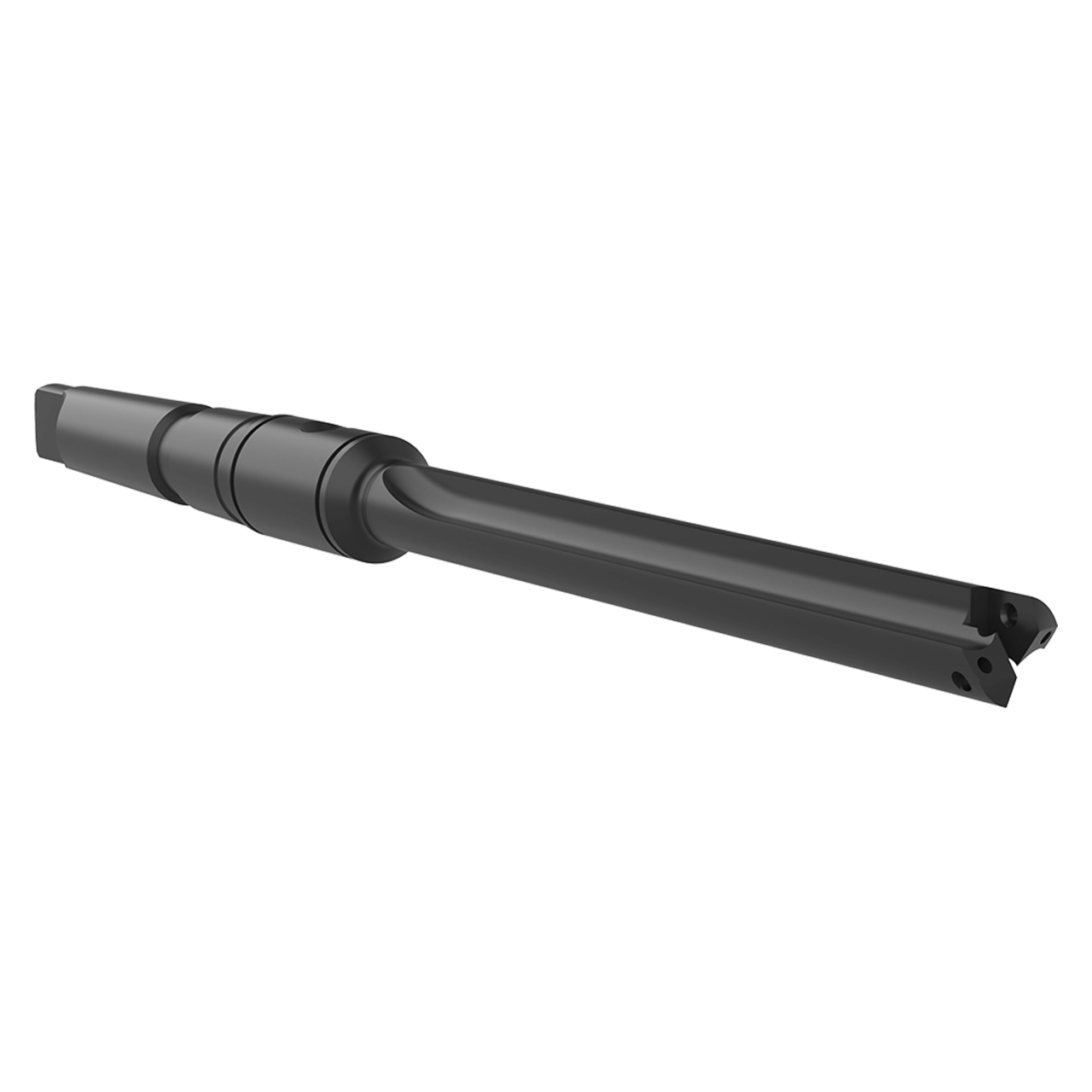

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 25000S-002I |
| Body Length (Inch) | 5-5/16" |
| Drill Depth (Inch) | 4-1/2" |
| Flute Type | Straight |
| Length Type | Extended |
| Maximum Diameter (Inch) | 11/16" |
| Minimum Diameter (Inch) | 33/64" |
| Overall length (Inch) | 9-19/32" |
| Pipe Tap Side (Inch) | 1/16" |
| Series | 0 |
| Shank Diameter (Inch) | #2 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 6-49/64" |
