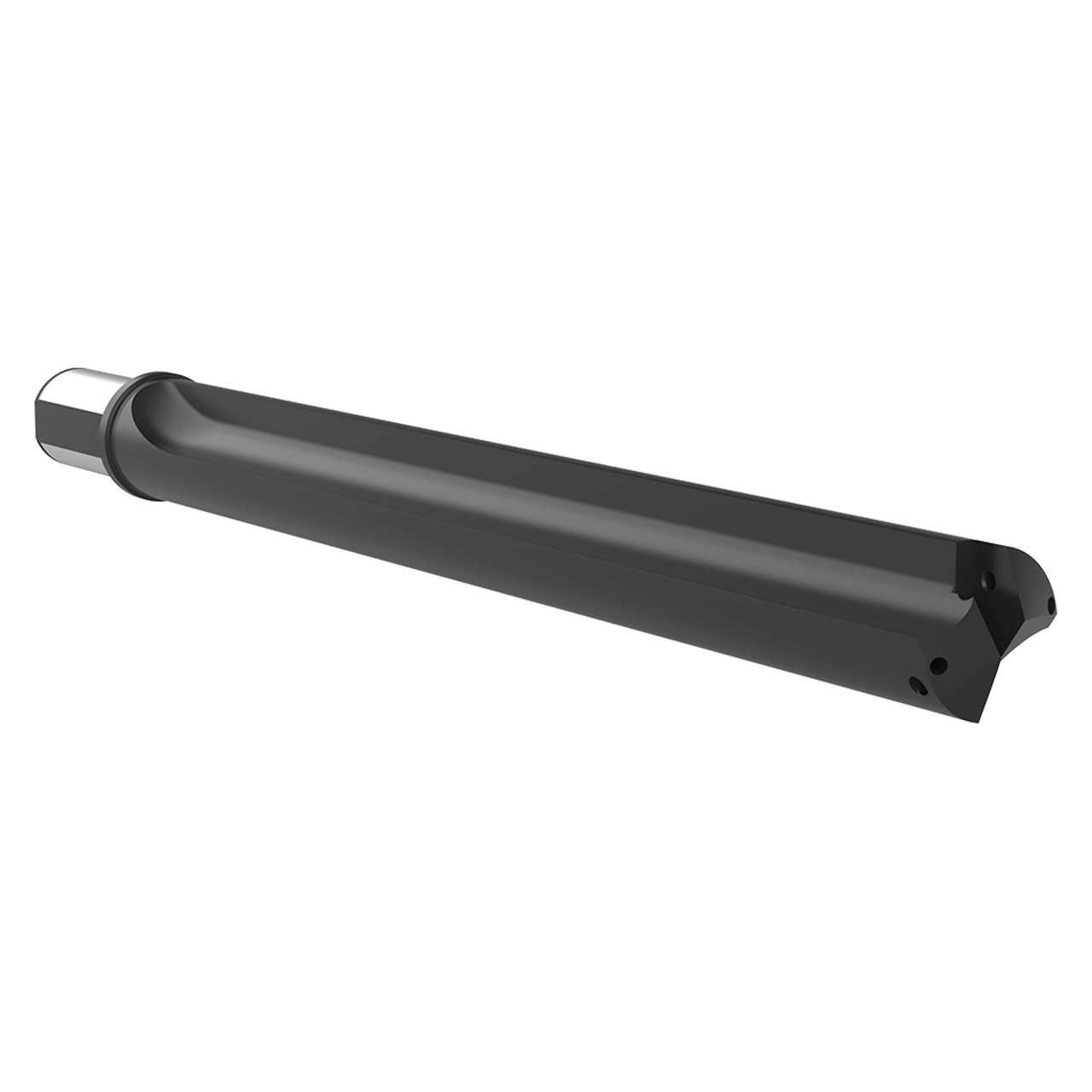

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 25040S-40FM |
| Body Length (mm) | 471.5mm |
| Drill Depth (mm) | 422.3mm |
| Flute Type | Straight |
| Length Type | Extended |
| Maximum Diameter (mm) | 65mm |
| Minimum Diameter (mm) | 48" |
| Overall length (mm) | 541.5mm |
| Pipe Tap Rear (Inch) | 1/4" |
| Series | 4 |
| Shank Diameter (mm) | 40mm |
| Shank Length (mm) | 70mm |
| Shank Type | Flanged |
| Tool Reference Length (mm) | 476.0mm |
