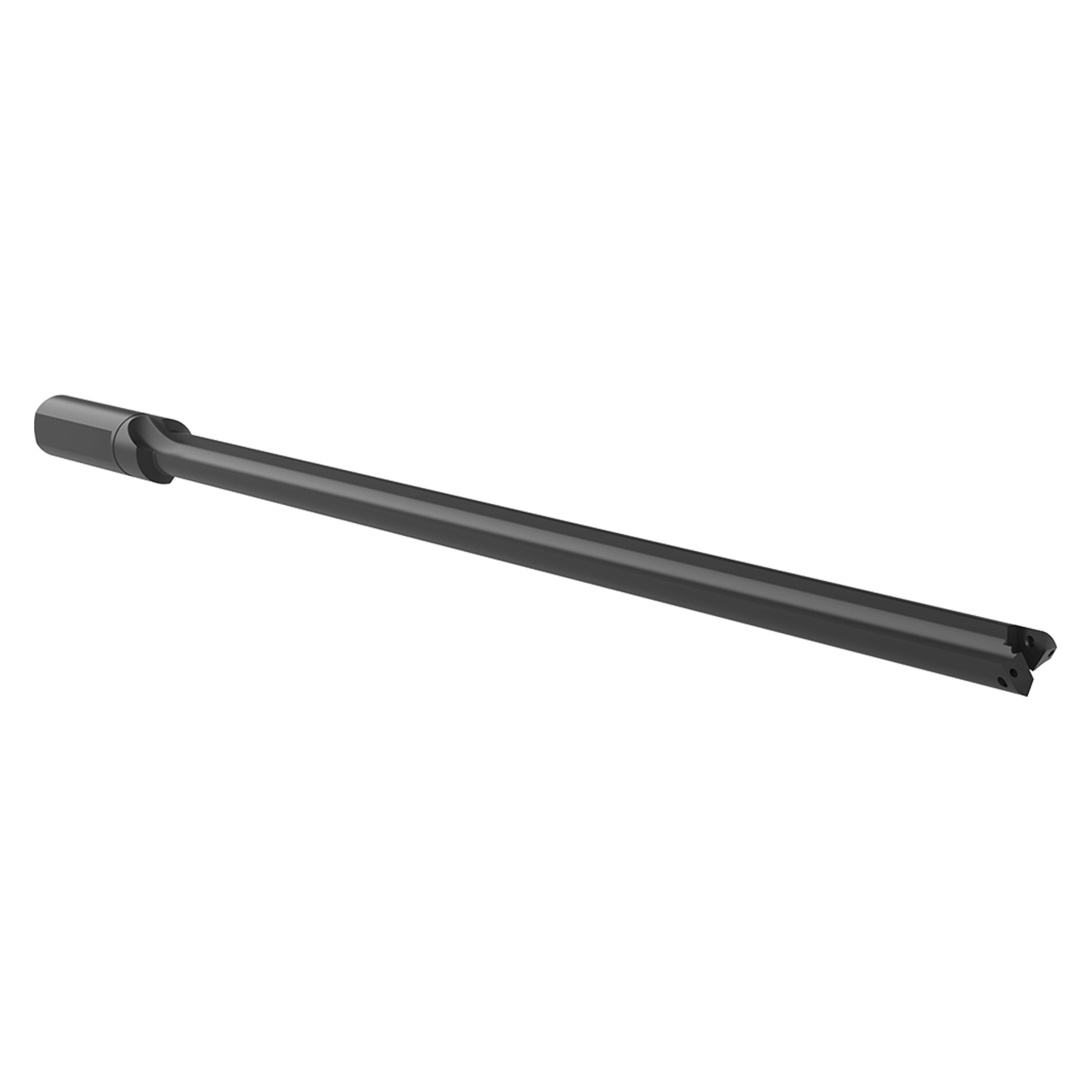

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 27010S-100L |
| Body Length (Inch) | 19-1/4" |
| Drill Depth (Inch) | 18" |
| Flute Type | Straight |
| Length Type | XL |
| Maximum Diameter (Inch) | 15/16" |
| Minimum Diameter (Inch) | 45/64" |
| Overall length (Inch) | 22-1/4" |
| Pipe Tap Rear (Inch) | 1/8" |
| Series | 1 |
| Shank Diameter (Inch) | 1" |
| Shank Length (Inch) | 3" |
| Shank Type | Lathe |
| Tool Reference Length (Inch) | 19-25/64" |
