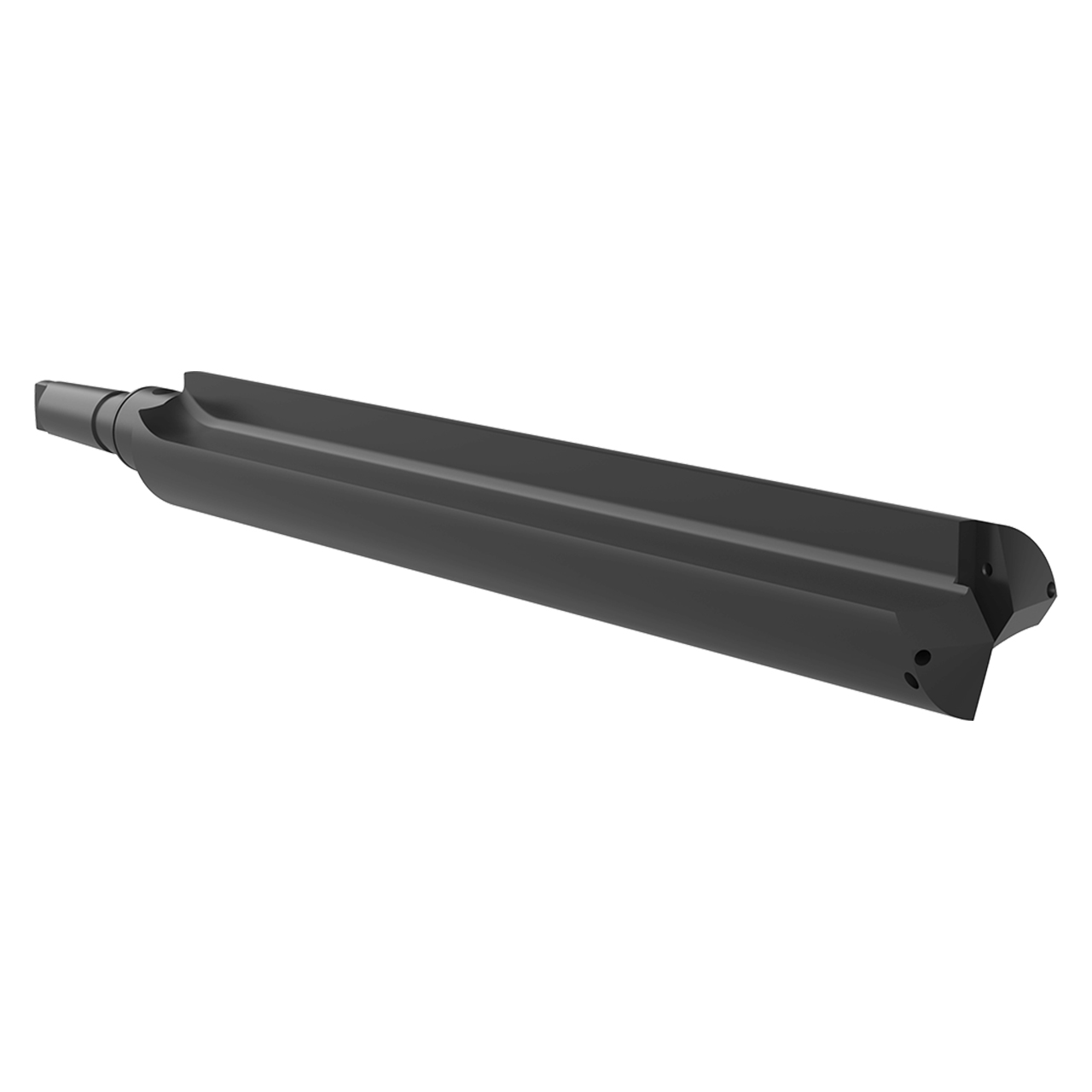

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 27070S-005I |
| Body Length (Inch) | 29-1/8" |
| Drill Depth (Inch) | 27" |
| Flute Type | Straight |
| Length Type | XL |
| Maximum Diameter (Inch) | 4-1/2" |
| Minimum Diameter (Inch) | 3-17/32" |
| Overall length (Inch) | 37-9/16" |
| Pipe Tap Side (Inch) | 1/2" |
| Series | 7 |
| Shank Diameter (Inch) | #5 MT |
| Shank Type | Morse Taper |
| Tool Reference Length (Inch) | 31-15/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
7
Minimum Drill Diameter (Inch):
3-17/32"
Minimum Drill Diameter (Decimal Inch):
3.5300"
Minimum Drill Diameter (mm):
89.69mm
Maximum Drill Diameter (Inch):
4-1/2"
Maximum Drill Diameter (Decimal Inch):
4.5000"
Maximum Drill Diameter (mm):
114.30mm
Shank Type:
Morse Taper
Flute Type:
Straight
