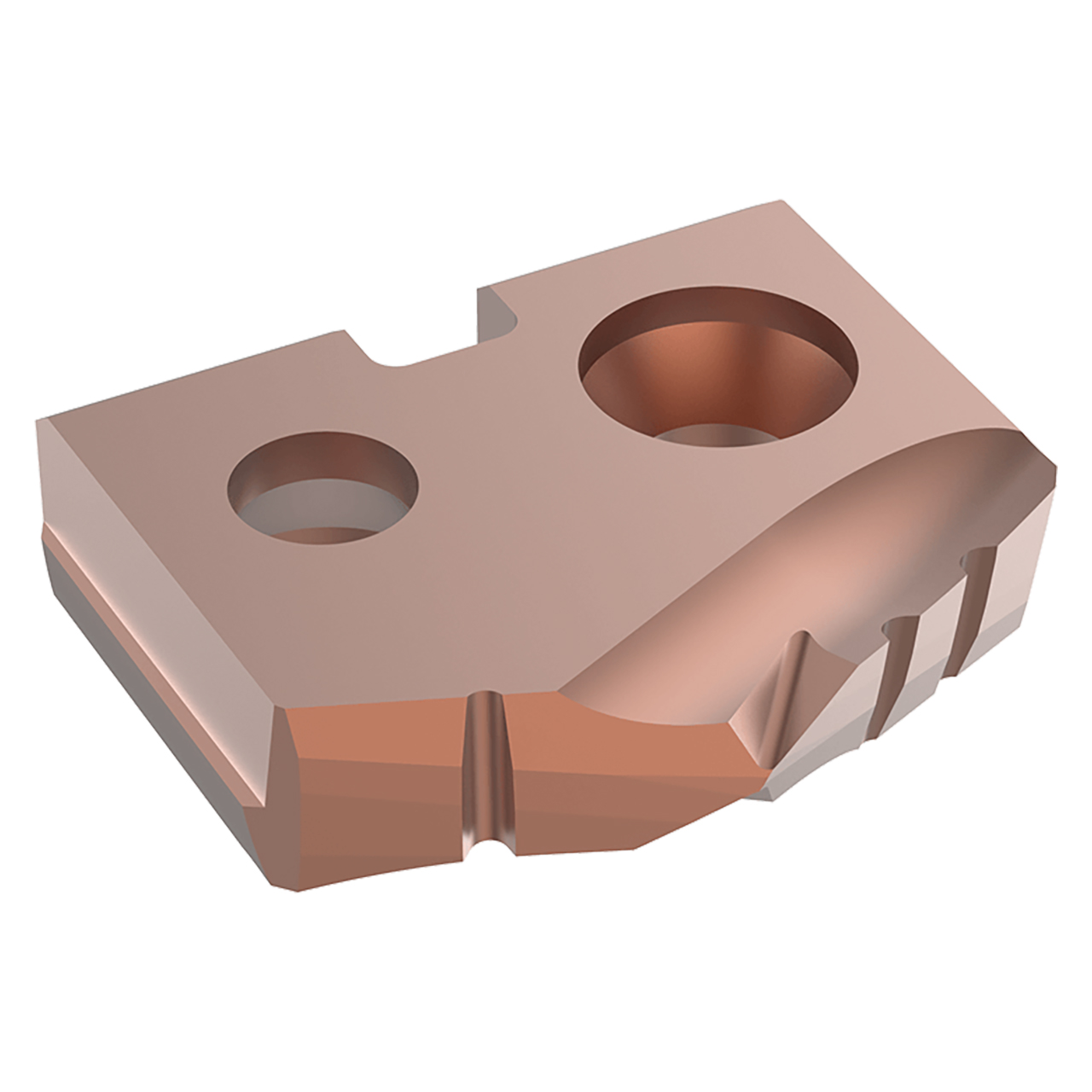

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.
Features:
- Notch Point geometry improves stability, hole straightness, and reduces thrust
- Web Thin reduces thrust and increases point strength, allowing greater reliability
- Helical Margin increases drill stability
- Helical Flute improves tool life
- Note: Non-stocked items are NON-RETURNABLE
Product Specifications
| # MFG | 4C2YH-10.5 |
| Diameter (Inch) | 0.4134" |
| Diameter (mm) | 10.50mm |
| Thickness (Inch) | 3/32" |
| Included Angle (Degree) | 132 Degree |
| Series | Y |
| Geometry | Standard |
| Material | C2(K20) |
| Coating | AM200 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
interval quantity:
2
Ships:
From Manufacturer In 2-3 Weeks (Contact Us For Current Availability)
