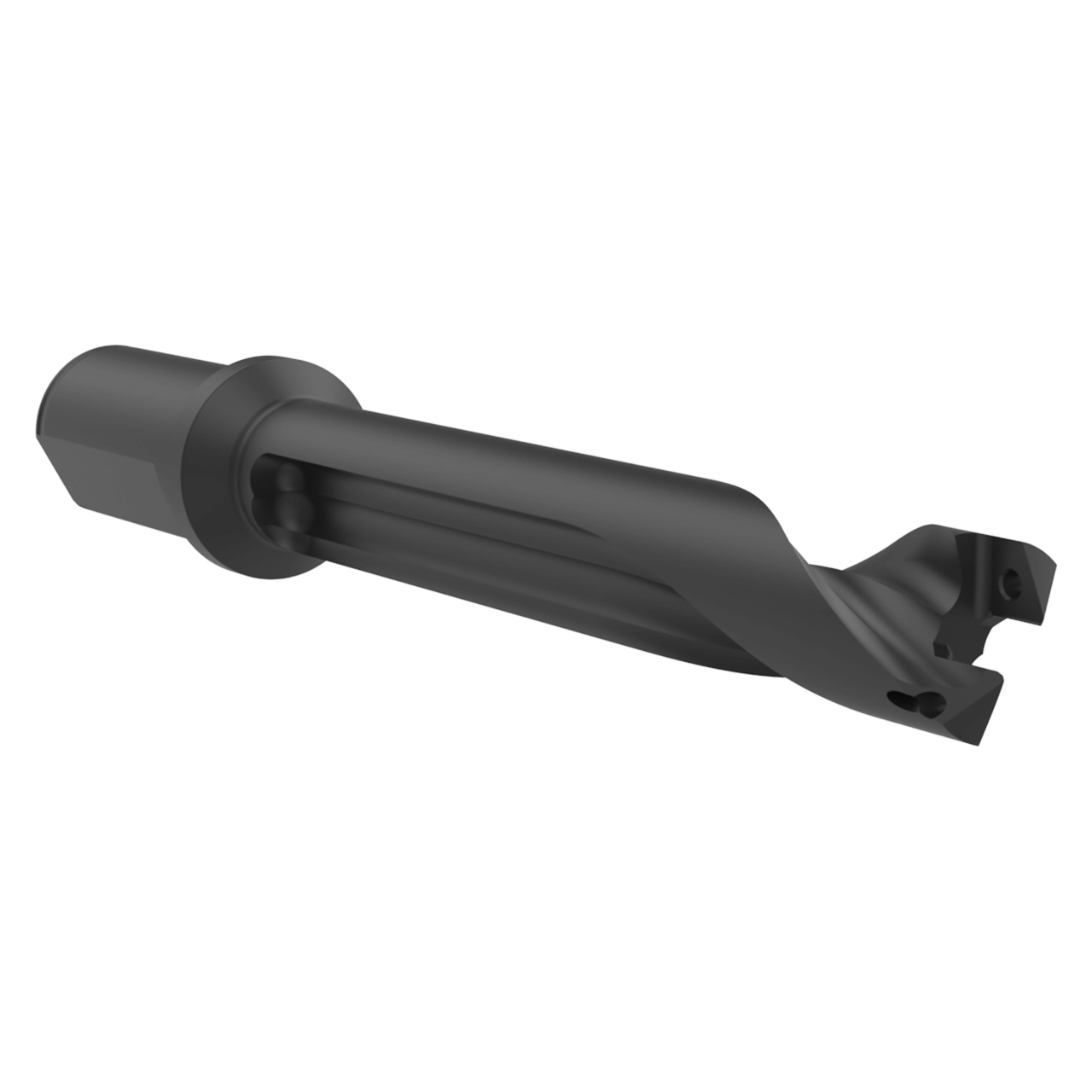

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60526S-125F |
| Body Length (Inch) | 7-11/32" |
| Drill Depth (Inch) | 5-23/32" |
| Maximum Diameter (Decimal Inch) | 1.1416" |
| Maximum Diameter (mm) | 28.99mm |
| Minimum Diameter (Decimal Inch) | 1.0236" |
| Minimum Diameter (mm) | 26mm |
| Overall Length (Inch) | 9-5/8" |
| Pipe Tap Rear (Inch) | 1/8 (NPT) |
| Series | 26 |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Length (Inch) | 2-9/32" |
| Tool Reference Length (Inch) | 7-29/64" |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
26
Minimum Drill Diameter (Inch):
1-1/32"
Minimum Drill Diameter (Decimal Inch):
1.0236"
Minimum Drill Diameter (mm):
26.00mm
Maximum Drill Diameter (Inch):
1-9/64"
Maximum Drill Diameter (Decimal Inch):
1.1416"
Maximum Drill Diameter (mm):
28.99mm
Shank Type:
Flanged
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Overall Length (Inch):
9-5/8"
Overall Length (Decimal Inch):
9.6300"
Overall Length (mm):
244.48mm
Drill Depth by Diameter Ratio:
5xD
Maximum Drill Depth (Inch):
5-23/32"
Maximum Drill Depth (Decimal Inch):
5.7200"
Maximum Drill Depth (mm):
145.26mm
Flute Type:
Straight
interval quantity:
2
