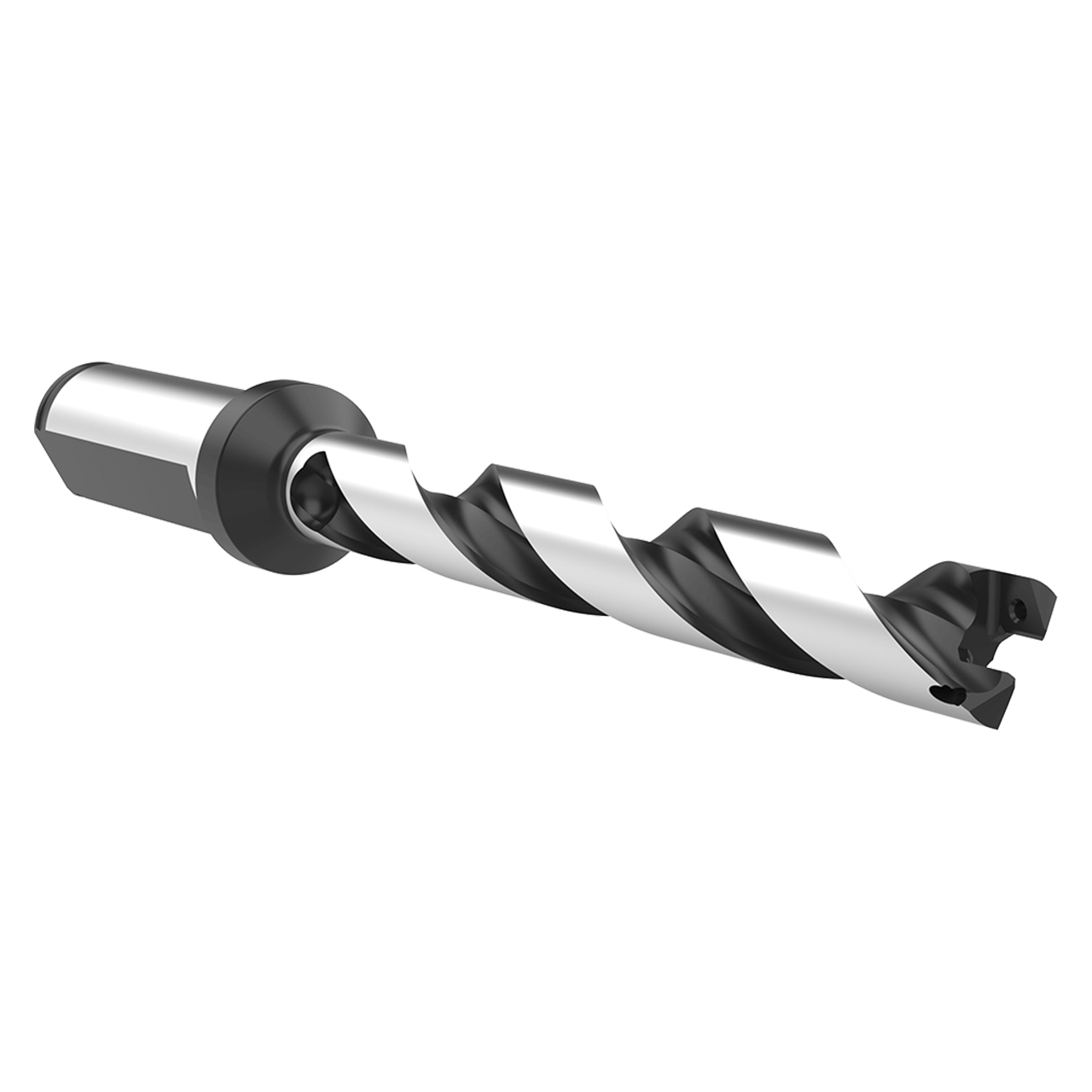

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60714H-20FM |
| Body Length (mm) | 132.4mm |
| Drill Depth (mm) | 104.9mm |
| Maximum Diameter (Decimal Inch) | 0.5905" |
| Maximum Diameter (mm) | 14.99mm |
| Minimum Diameter (Decimal Inch) | 0.5512" |
| Minimum Diameter (mm) | 14mm |
| Overall Length (mm) | 182.4mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 14 |
| Shank Diameter (mm) | 20.00mm |
| Shank Length (mm) | 50mm |
| Tool Reference Length (mm) | 134.9mm |
| Length Type | 7xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Helical |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
14
Minimum Drill Diameter (Inch):
35/64"
Minimum Drill Diameter (Decimal Inch):
0.5512"
Minimum Drill Diameter (mm):
14.00mm
Maximum Drill Diameter (Inch):
19/32"
Maximum Drill Diameter (Decimal Inch):
0.5905"
Maximum Drill Diameter (mm):
14.99mm
Shank Type:
Flanged
Drill Depth by Diameter Ratio:
7xD
Maximum Drill Depth (Inch):
4-1/8"
Maximum Drill Depth (Decimal Inch):
4.1300"
Maximum Drill Depth (mm):
104.90mm
Flute Type:
Helical
interval quantity:
2
