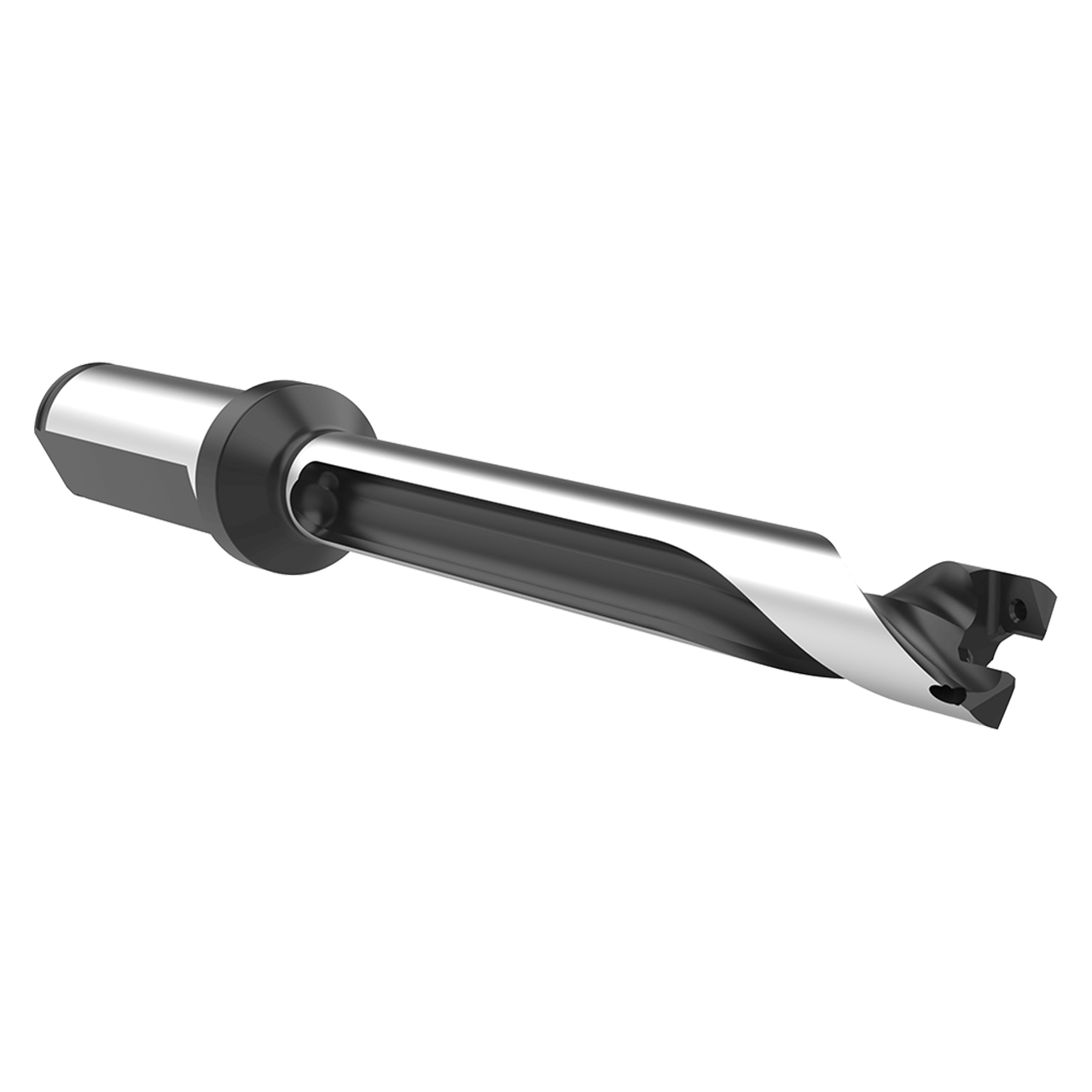

Allied Machine and Engineering 60714S-20FM | 14.00mm Diameter x 20.00mm Shank 14 Series Straight Flute Indexable Spade Drill

SKU: 23034009 Weight: 0.51 LBS Minimum Purchase: 1 unit
UPC:
$388.22
Shipping: Free Shipping

About This Item

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.

Features:

  • The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
  • Straight and helical flute options
  • Precision-ground locating slots
  • Cylindrical flanged and flanged flat shank options

Product Specifications
# MFG60714S-20FM
Body Length (mm)132.4mm
Drill Depth (mm)104.9mm
Maximum Diameter (Decimal Inch)0.5905"
Maximum Diameter (mm)14.99mm
Minimum Diameter (Decimal Inch)0.5512"
Minimum Diameter (mm)14mm
Overall Length (mm)182.4mm
Pipe Tap Rear (mm)1/8 (BSP)
Series14
Shank Diameter (mm)20.00mm
Shank Length (mm)50mm
Tool Reference Length (mm)134.9mm
Length Type7xD
Coolant Inlet Style RearTSC
FlatYes
Flute TypeStraight
Shank TypeFlanged
