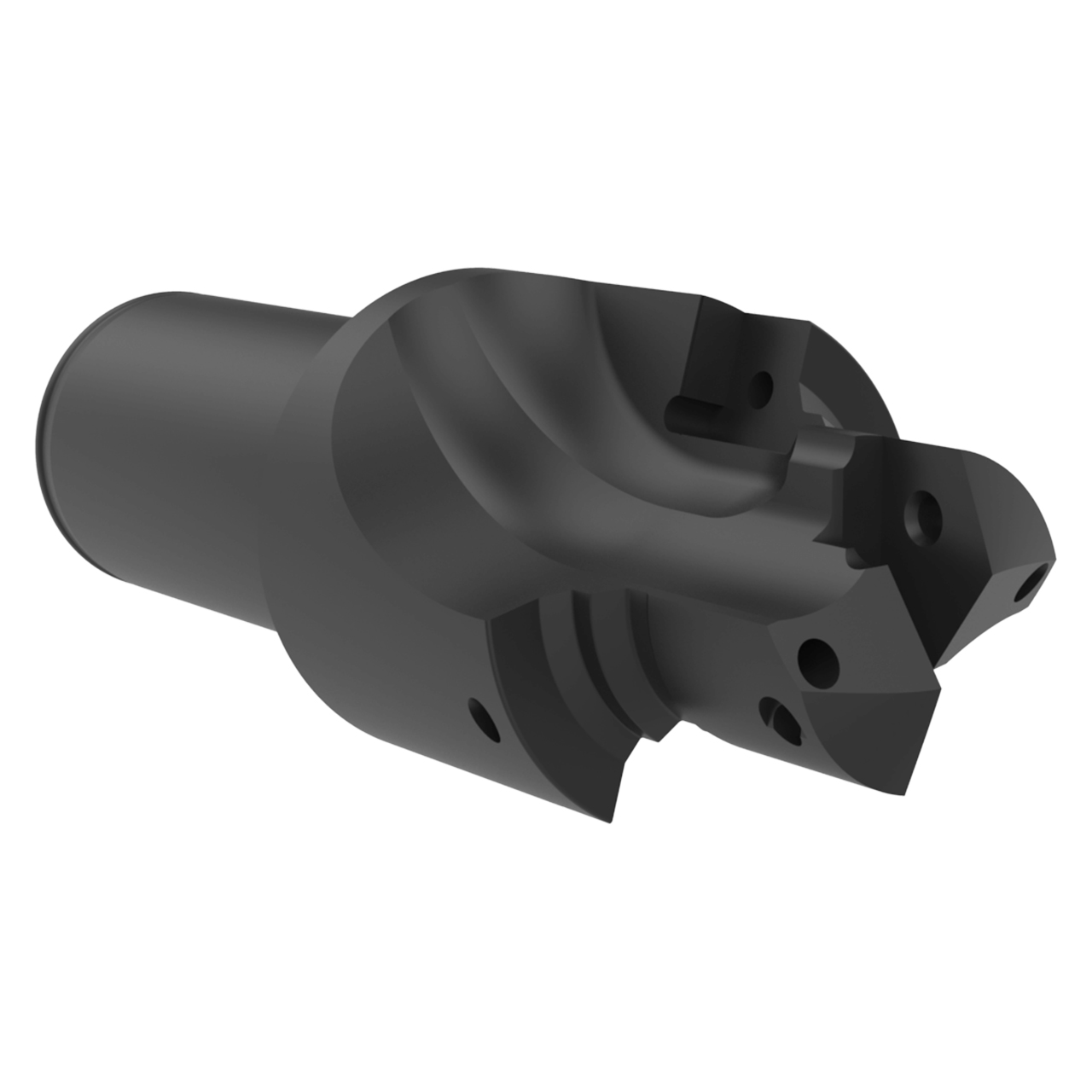

Allied Machine and Engineering AS5202-142-125F | -14 Size x 1.109" Diameter x 1.25" Shank x 5.05" OAL 2 Series Indexable Porting Tool

$782.00
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE AS5202
Port Thread Size:
1 3/16-12 UNJ-3B
Tube Dash Number:
-14
Pilot Diameter (Inch):
1-7/64"
Pilot Diameter (Decimal Inch):
1.1090"
Pilot Diameter (mm):
28.17mm
Spotface Diameter (Inch):
1-25/32"
Spotface Diameter (Decimal Inch):
1.7750"
Spotface Diameter (mm):
45.09mm
Pilot Length (Inch):
1-1/16"
Pilot Length (Decimal Inch):
1.0690"
Pilot Length (mm):
27.15mm
interval quantity:
1
SKU:
23029472
UPC:
Weight:
1.55 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGAS5202-142-125F
Pilot Diameter (Inch)1.109"
Pilot Diameter (mm)28.17mm
Spotface Diameter (Inch)1.775"
Spotface Diameter (mm)45.09mm
Shank Diameter (Inch)1.25"
Shank Diameter (mm)31.75mm
Seal Angle Diameter (Inch)1.363"
Seal Angle Diameter (mm)34.61mm
Overall Length (Inch)5.05"
Overall Length (mm)128.17mm
Pilot Length (Inch)2.281"
Pilot Length (mm)57.94mm
Shank Length (Inch)1.465"
Shank Length (mm)37.22mm
Seal Angle60 Degree
Spotface to Shoulder Length (mm)37.22mm
Seal Angle60 Degree
Series2
Tube Size-14
Port StandardSAE AS5202
Port Thread Size1 3/16-12 UNJ-3B
Shank TypeCylindrical
Pipe Tap Rear (Inch)1/4"
