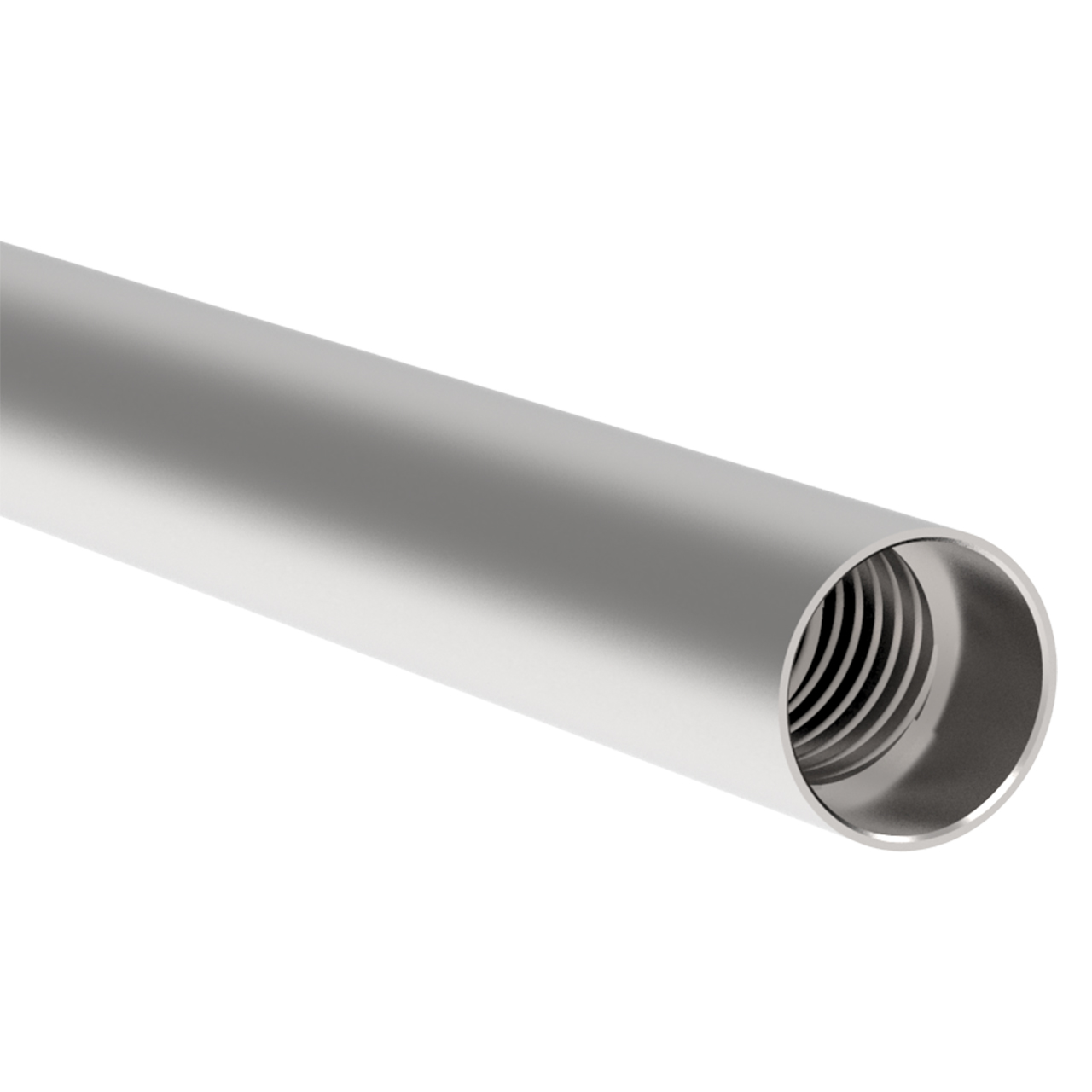

The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems.
Features:
- The BT-A Drill includes laser clad bearing area for improved straightness, replaceable cutting edges to eliminate the need for resharpening and significantly increased penetration rates over brazed heads and traditional gun drills
Product Specifications
| # MFG | BTAT799-63 |
| Maximum Diameter (Inch) | 0.744" |
| Maximum Diameter (mm) | 18.9mm |
| Minimum Diameter (Inch) | 0.697" |
| Minimum Diameter (mm) | 17.69mm |
| Outer Diameter (Inch) | 0.63" |
| Outer Diameter (mm) | 16mm |
| Overall length (Inch) | 63.000" |
| Overall length (mm) | 1600mm |
| Tube Size | 799 |
| Inner Diameter (Inch) | 0.413" |
| Inner Diameter (mm) | 10.5mm |
