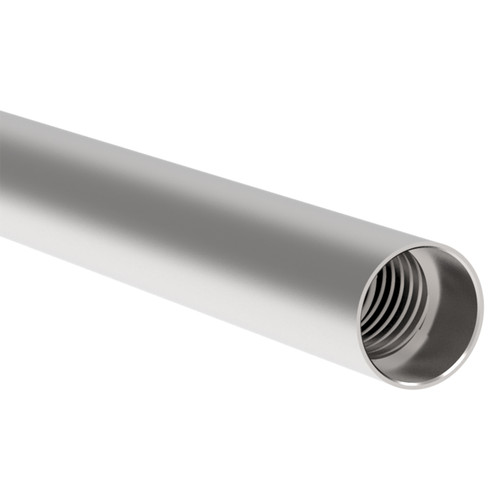

Allied Machine and Engineering BTAT802-63 | 802 Tube Size x 0.948" Diameter x 63.000" OAL Drill Tube

SKU: 23031170 Weight: 7.90 LBS Minimum Purchase: 1 unit
UPC:
$867.00
Shipping: Free Shipping

About This Item

The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems.

Features:

  • The BT-A Drill includes laser clad bearing area for improved straightness, replaceable cutting edges to eliminate the need for resharpening and significantly increased penetration rates over brazed heads and traditional gun drills

Product Specifications
# MFGBTAT802-63
Maximum Diameter (Inch)0.948"
Maximum Diameter (mm)24.08mm
Minimum Diameter (Inch)0.859"
Minimum Diameter (mm)21.8mm
Outer Diameter (Inch)0.787"
Outer Diameter (mm)20mm
Overall length (Inch)63.000"
Overall length (mm)1600mm
Tube Size802
Inner Diameter (Inch)0.512"
Inner Diameter (mm)13mm
