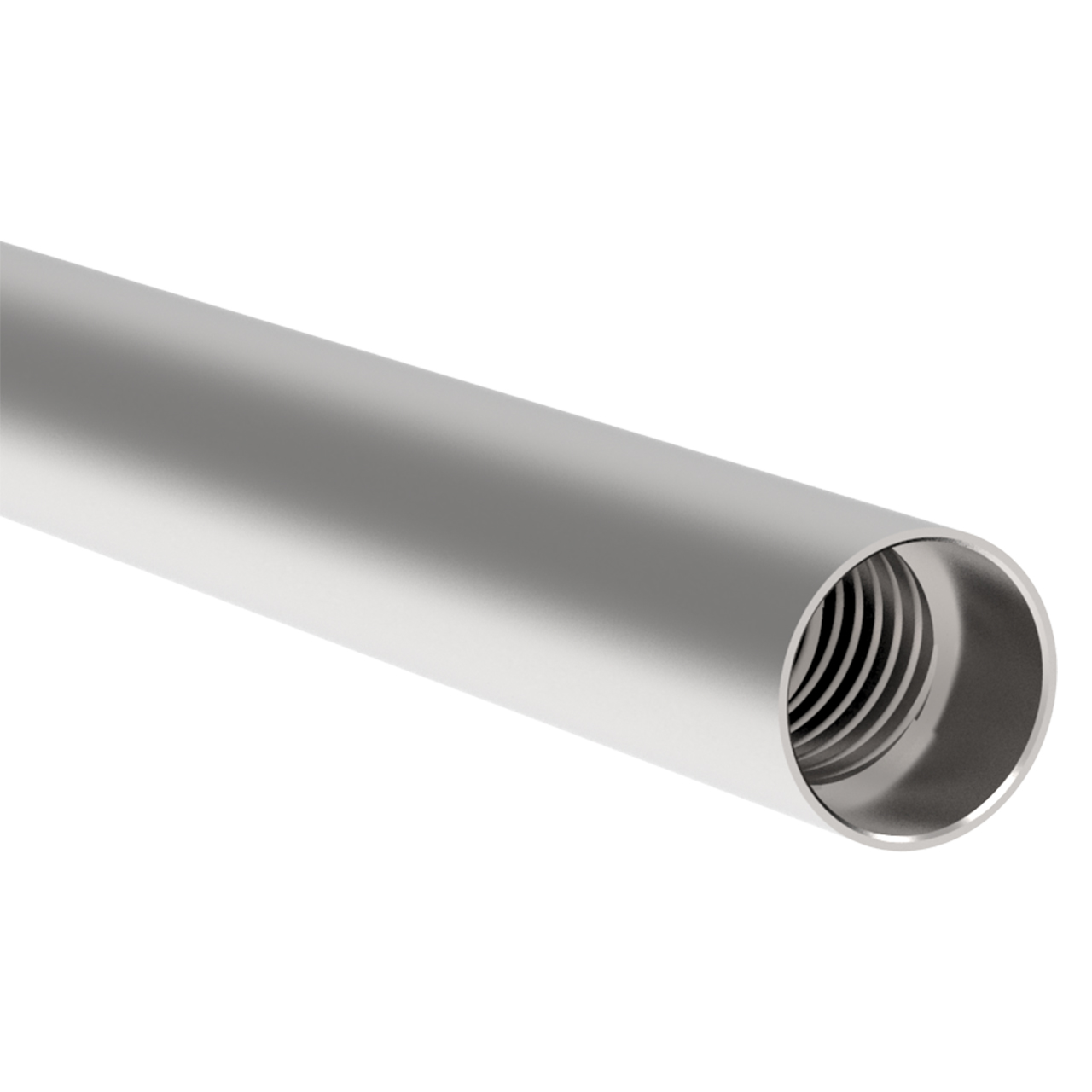

Allied Machine and Engineering BTAT799-63 | 799 Tube Size x 0.744" Diameter x 63.000" OAL Drill Tube

$540.00
interval quantity:
1
SKU:
23031176
UPC:
Weight:
7.41 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems.

Features:

  • The BT-A Drill includes laser clad bearing area for improved straightness, replaceable cutting edges to eliminate the need for resharpening and significantly increased penetration rates over brazed heads and traditional gun drills

Product Specifications
# MFGBTAT799-63
Maximum Diameter (Inch)0.744"
Maximum Diameter (mm)18.9mm
Minimum Diameter (Inch)0.697"
Minimum Diameter (mm)17.69mm
Outer Diameter (Inch)0.63"
Outer Diameter (mm)16mm
Overall length (Inch)63.000"
Overall length (mm)1600mm
Tube Size799
Inner Diameter (Inch)0.413"
Inner Diameter (mm)10.5mm
