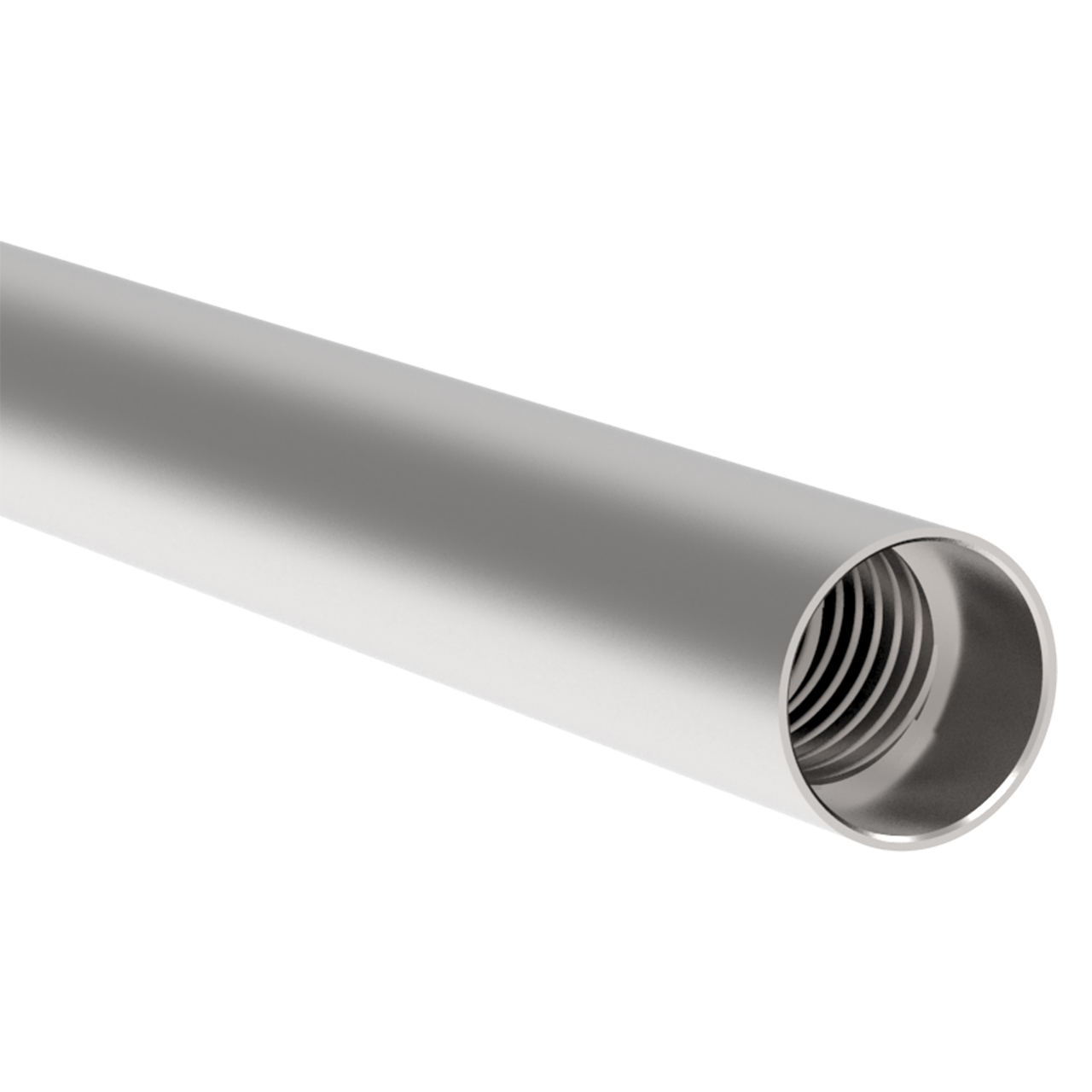

Allied Machine and Engineering BTAT800-63 | 800 Tube Size x 0.787" Diameter x 63.000" OAL Drill Tube

$590.00
Brand:
Allied Machine and Engineering
interval quantity:
1
SKU:
23031174
UPC:
Weight:
5.96 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems.

Features:

  • The BT-A Drill includes laser clad bearing area for improved straightness, replaceable cutting edges to eliminate the need for resharpening and significantly increased penetration rates over brazed heads and traditional gun drills

Product Specifications
# MFGBTAT800-63
Maximum Diameter (Inch)0.787"
Maximum Diameter (mm)20mm
Minimum Diameter (Inch)0.745"
Minimum Diameter (mm)18.91mm
Outer Diameter (Inch)0.669"
Outer Diameter (mm)17mm
Overall length (Inch)63.000"
Overall length (mm)1600mm
Tube Size800
Inner Diameter (Inch)0.453"
Inner Diameter (mm)11.5mm
