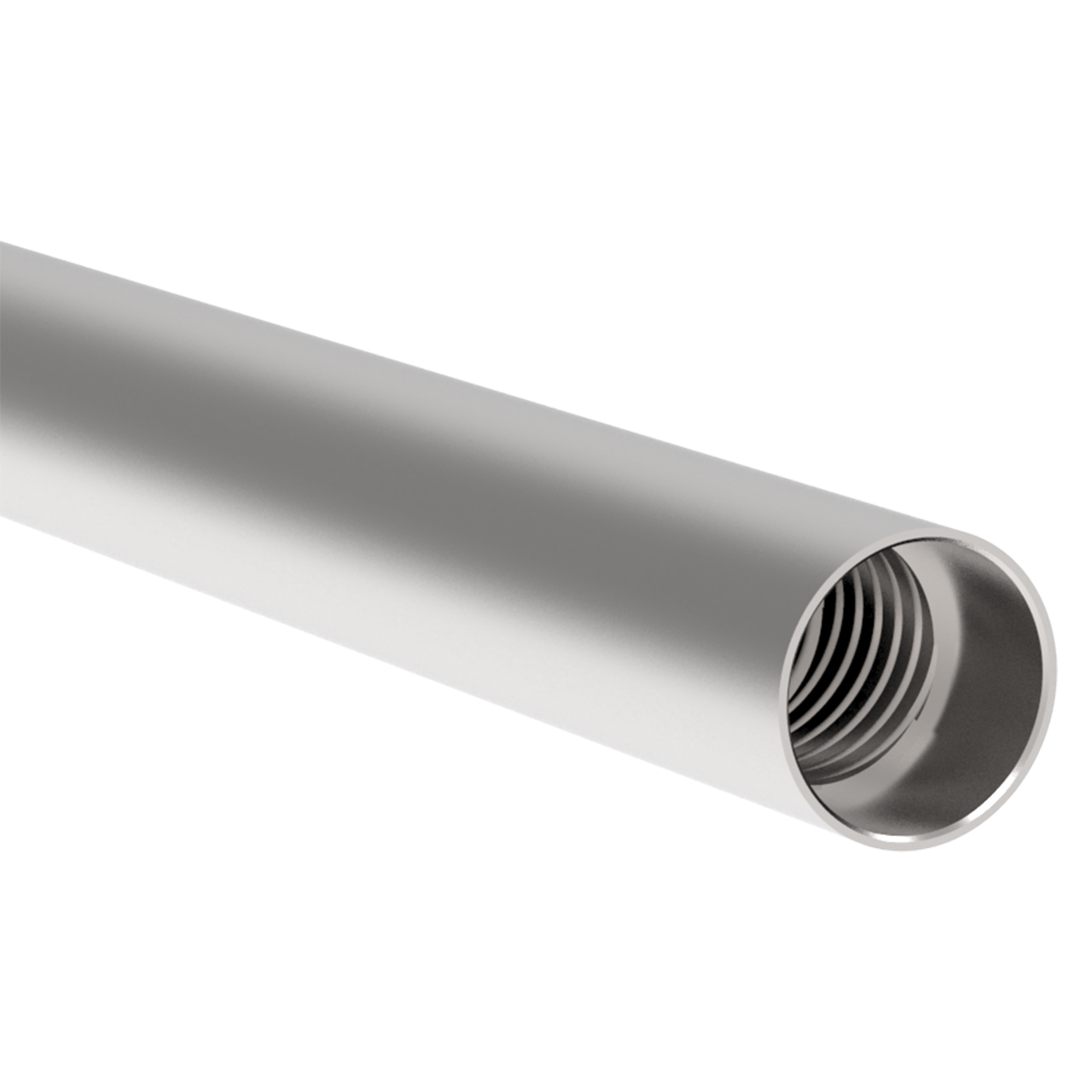

Allied Machine and Engineering BTAT804-102 | 804 Tube Size x 1.129" Diameter x 102.000" OAL Drill Tube

SKU: 23031167 Weight: 14.03 LBS Minimum Purchase: 1 unit
UPC:
$1,133.00
Shipping: Free Shipping

About This Item

The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems.

Features:

  • The BT-A Drill includes laser clad bearing area for improved straightness, replaceable cutting edges to eliminate the need for resharpening and significantly increased penetration rates over brazed heads and traditional gun drills

Product Specifications
# MFGBTAT804-102
Maximum Diameter (Inch)1.129"
Maximum Diameter (mm)28.68mm
Minimum Diameter (Inch)1.04"
Minimum Diameter (mm)26.4mm
Outer Diameter (Inch)0.945"
Outer Diameter (mm)24mm
Overall length (Inch)102.000"
Overall length (mm)2591mm
Tube Size804
Inner Diameter (Inch)0.61"
Inner Diameter (mm)15.5mm
