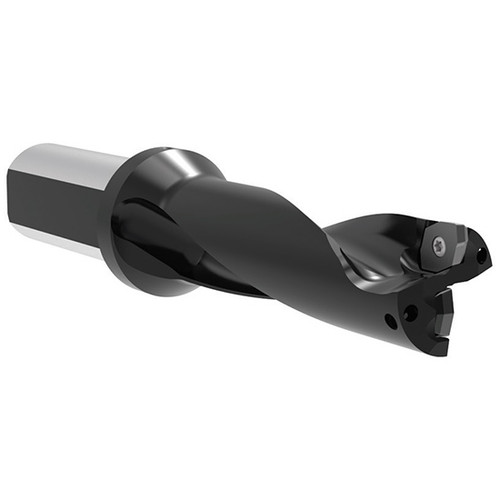

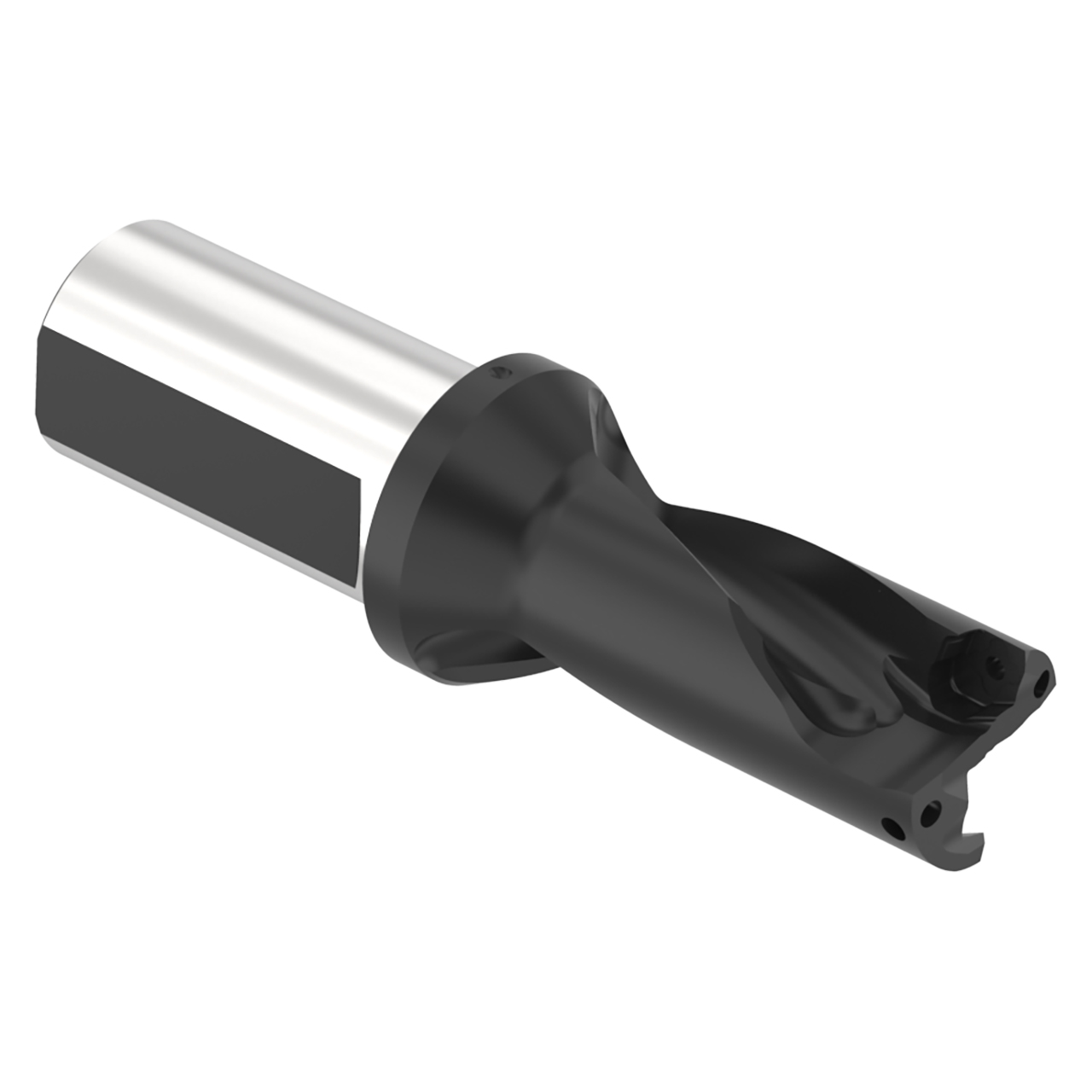

The 4TEX indexable carbide drill provides increased penetration rates on light duty machines due to the single effective design. With twisted coolant outlets and increased core strength, the design provides improved hole size and finish. The four-sided 4TEX inserts are designed to use two sides in the center pocket and two sides in the periphery pocket for an improved cost per hole.
Features:
- Stronger core
- Two twisted coolant holes
- Increased coolant volume
- Four-sided insert design
- Insert geometries specific for ISO materials
- Single effective cutting
Product Specifications
| # MFG | D2092800M-32FM |
| Assembled Overall Length (mm) | 137.70mm |
| Cutter Diameter (mm) | 28mm |
| Depth to Diameter | 2XD |
| Drill Depth (mm) | 56.00mm |
| Flange Diameter (mm) | 41.00mm |
| Gage Length (mm) | 78.70mm |
| Series | 09 |
| Shank Diameter (Inch) | 1.2598" |
| Shank Diameter (mm) | 32.00mm |
| Shank Type | Flanged |
