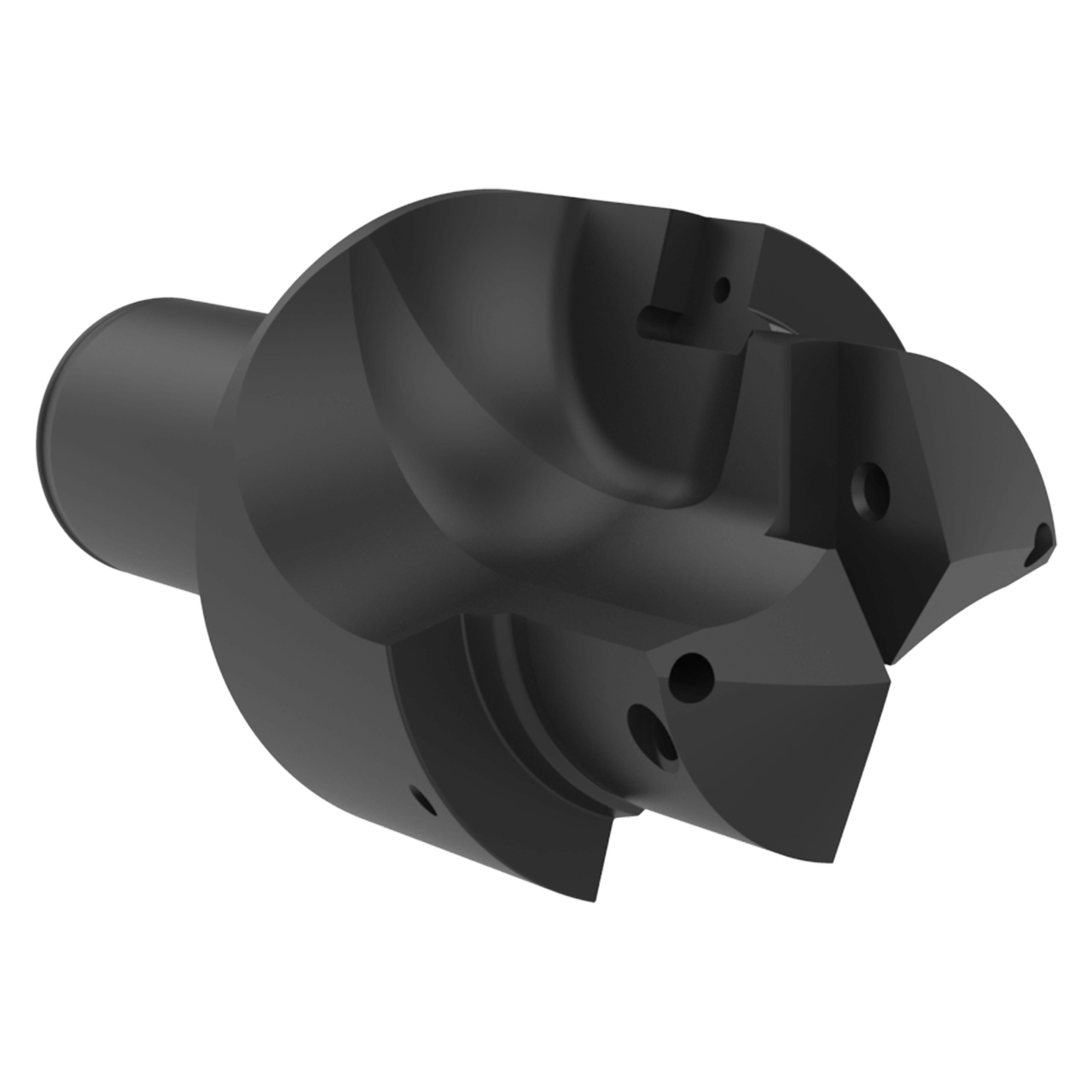

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | G1731-243-32FM |
| Pilot Diameter (Inch) | 1.811" |
| Pilot Diameter (mm) | 46mm |
| Spotface Diameter (Inch) | 2.638" |
| Spotface Diameter (mm) | 67mm |
| Shank Diameter (Inch) | 1.26" |
| Shank Diameter (mm) | 32mm |
| Seal Angle Diameter (Inch) | 1.988" |
| Seal Angle Diameter (mm) | 50.5mm |
| Overall Length (Inch) | 5.78" |
| Overall Length (mm) | 146.8mm |
| Seal Angle Length (Inch) | 0.132" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 1.142" |
| Pilot Length (mm) | 29mm |
| Shank Length (Inch) | 2.58" |
| Shank Length (mm) | 65.5mm |
| Spotface to Shoulder Length (Inch) | 1.687" |
| Spotface to Shoulder Length (mm) | 42.8mm |
| Seal Angle | 15 Degree |
| Series | 3 |
| Tube Size | -24 |
| Port Standard | JDS-G173.1 |
| Port Thread Size | M48 X 2 |
| Shank Type | Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Port Standard Designation:
JDS-G173.1
Port Thread Size:
M48 X 2
Tube Dash Number:
-24
Pilot Diameter (Inch):
1-13/16"
Pilot Diameter (Decimal Inch):
1.8110"
Pilot Diameter (mm):
46.00mm
Spotface Diameter (Inch):
2-41/64"
Spotface Diameter (Decimal Inch):
2.6380"
Spotface Diameter (mm):
67.00mm
Pilot Length (Inch):
1-9/64"
Pilot Length (Decimal Inch):
1.1420"
Pilot Length (mm):
29.00mm
