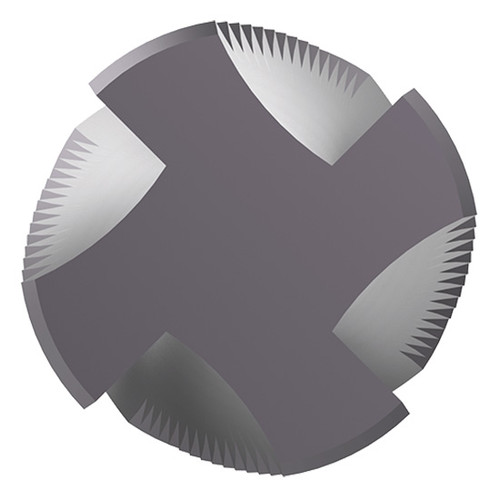

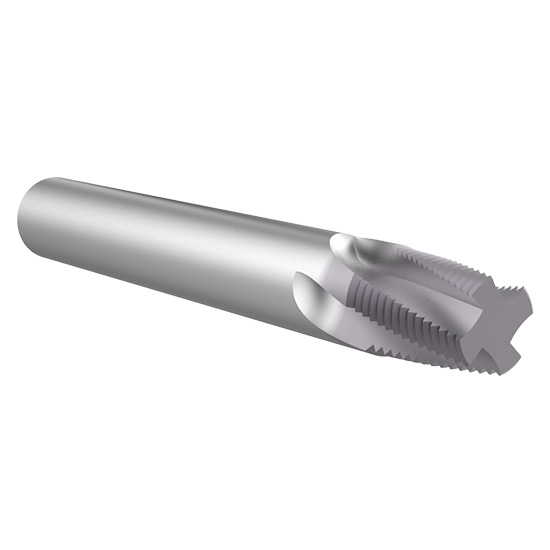

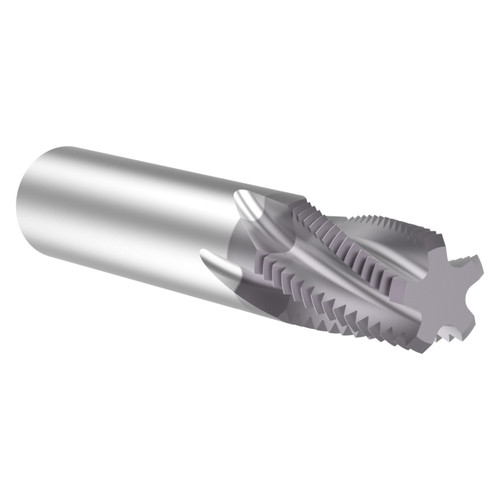

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 11.5
- Thread Form : NPT
Product Specifications
| #MFG | HDTM11NPTCH |
| Thread Size (Inch) | 1" |
| Thread Size (Decimal Inch) | 1.0000" |
| Thread Size (mm) | 25.40mm |
| Cutter Diameter (Inch) | 3/4" |
| Cutter Diameter (Decimal Inch) | 0.7450" |
| Cutter Diameter (mm) | 18.92mm |
| Pitch (Inch) | 29/64" |
| Pitch (Decimal Inch) | 0.4500" |
| Pitch (mm) | 11.50mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 1-7/32" |
| Length of Cut (Decimal Inch) | 1.2190" |
| Length of Cut (mm) | 30.96mm |
| Number of Flutes | 5 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
1"
Thread Size (Decimal Inch):
1.0000"
Thread Size (mm):
25.40mm
Thread Type:
Internal/External
Pitch (Inch):
29/64"
Pitch (Decimal Inch):
0.4500"
Pitch (mm):
11.50mm
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7450"
Cutter Diameter (mm):
18.92mm
Finish/Coating:
TiAIN
Material:
Carbide
