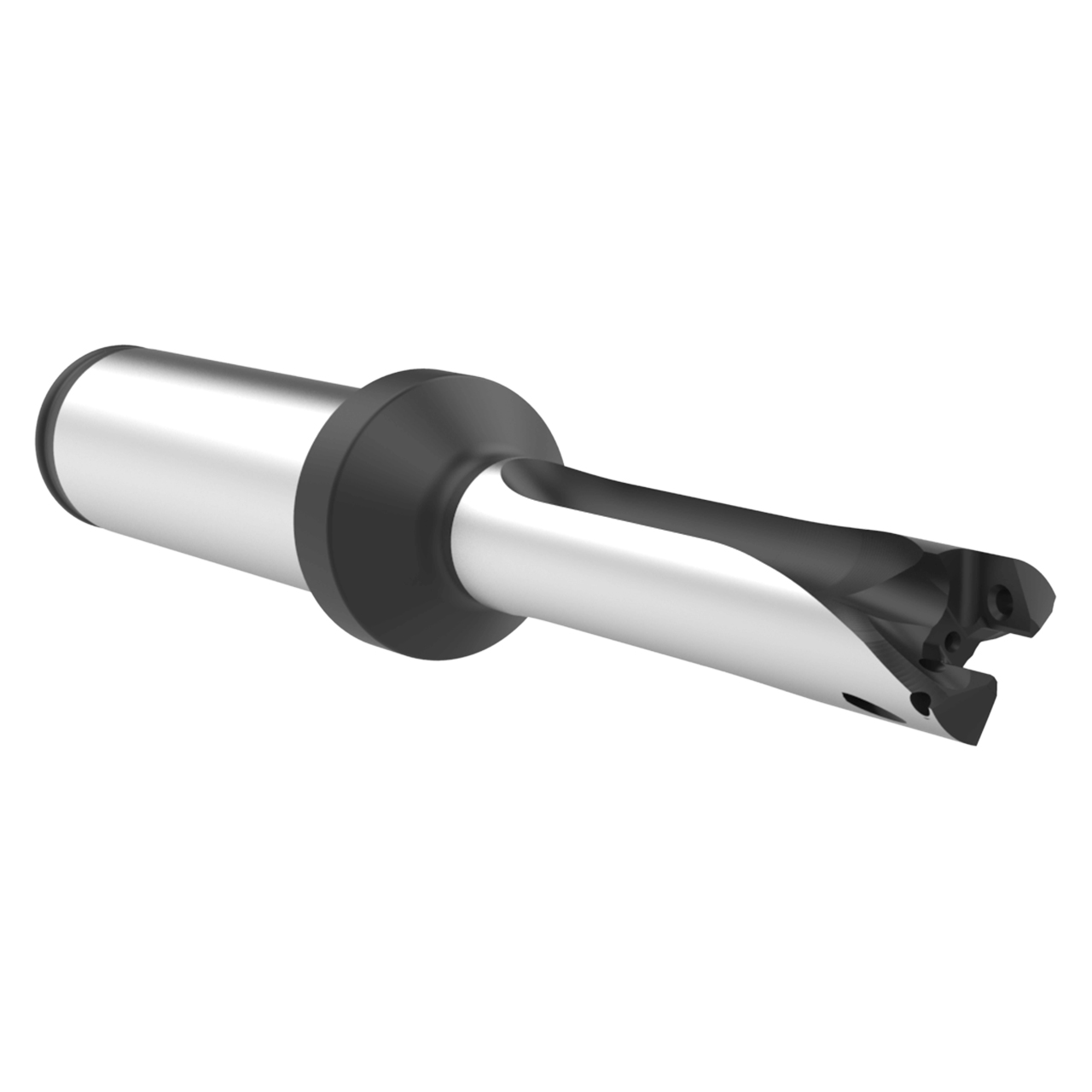

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0313S-075C |
| Body Length (Inch) | 2.725" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (Inch) | 1-21/32" |
| Flat | No |
| Length Type | 3xD |
| Maximum Diameter (Inch) | 0.5511" |
| Maximum Diameter (mm) | 13.99mm |
| Minimum Diameter (Inch) | 0.5118" |
| Minimum Diameter (mm) | 13mm |
| Overall Length (Inch) | 4-27/32" |
| Series | 13 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 2-13/16" |
