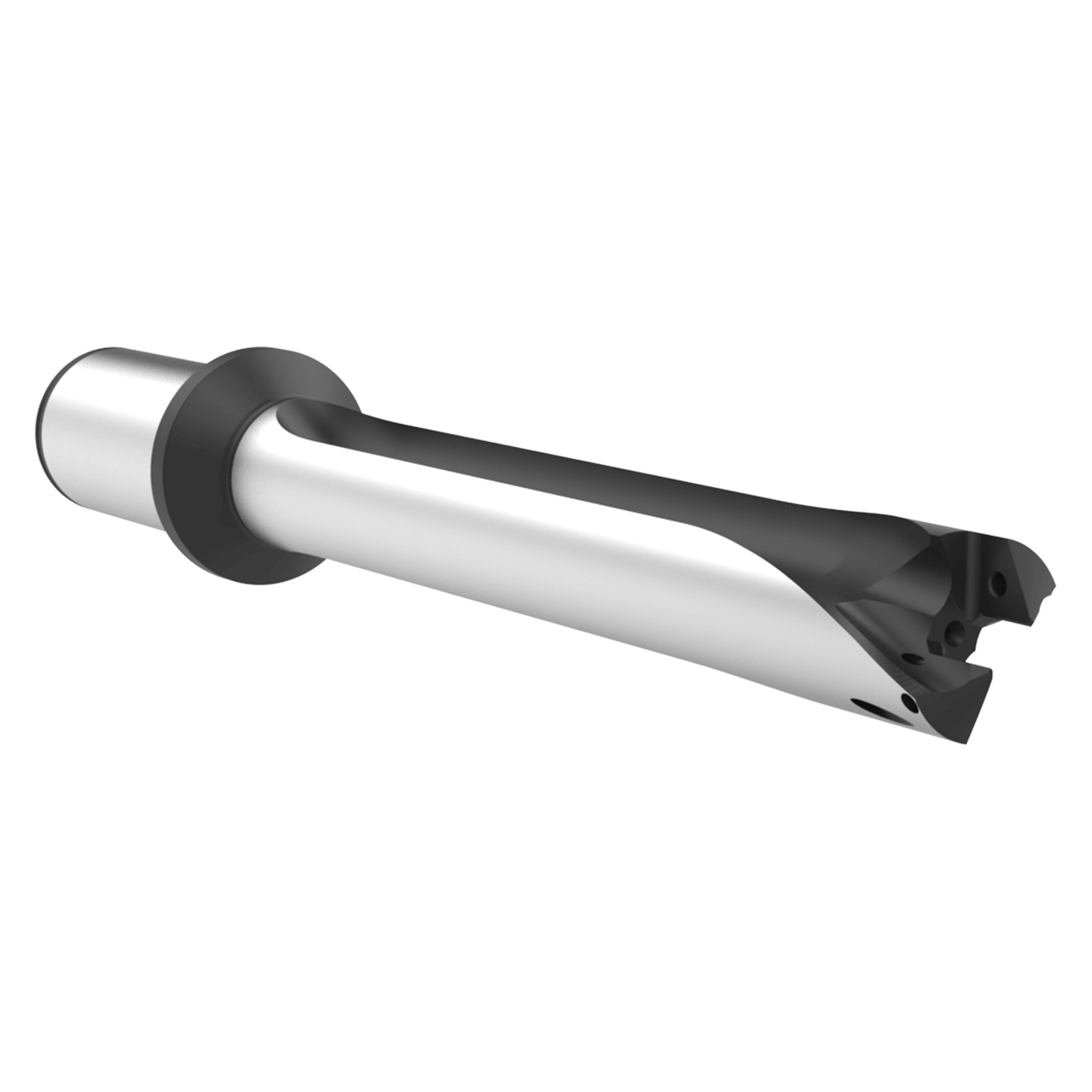

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0532S-32CM |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (mm) | 175mm |
| Flat | No |
| Length Type | 5xD |
| Maximum Diameter (Inch) | 1.378" |
| Maximum Diameter (mm) | 35mm |
| Minimum Diameter (Inch) | 1.2598" |
| Minimum Diameter (mm) | 32mm |
| Overall Length (mm) | 301.3mm |
| Series | 32 |
| Shank Diameter (mm) | 32mm |
| Shank Length (mm) | 60mm |
| Shank type | Flanged |
| Tool Reference Length (mm) | 231.3mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
32
Minimum Drill Diameter (Inch):
1-17/64"
Minimum Drill Diameter (Decimal Inch):
1.2598"
Minimum Drill Diameter (mm):
32.00mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3780"
Maximum Drill Diameter (mm):
35.00mm
Shank Type:
Flanged
Flute Type:
Straight
interval quantity:
1
