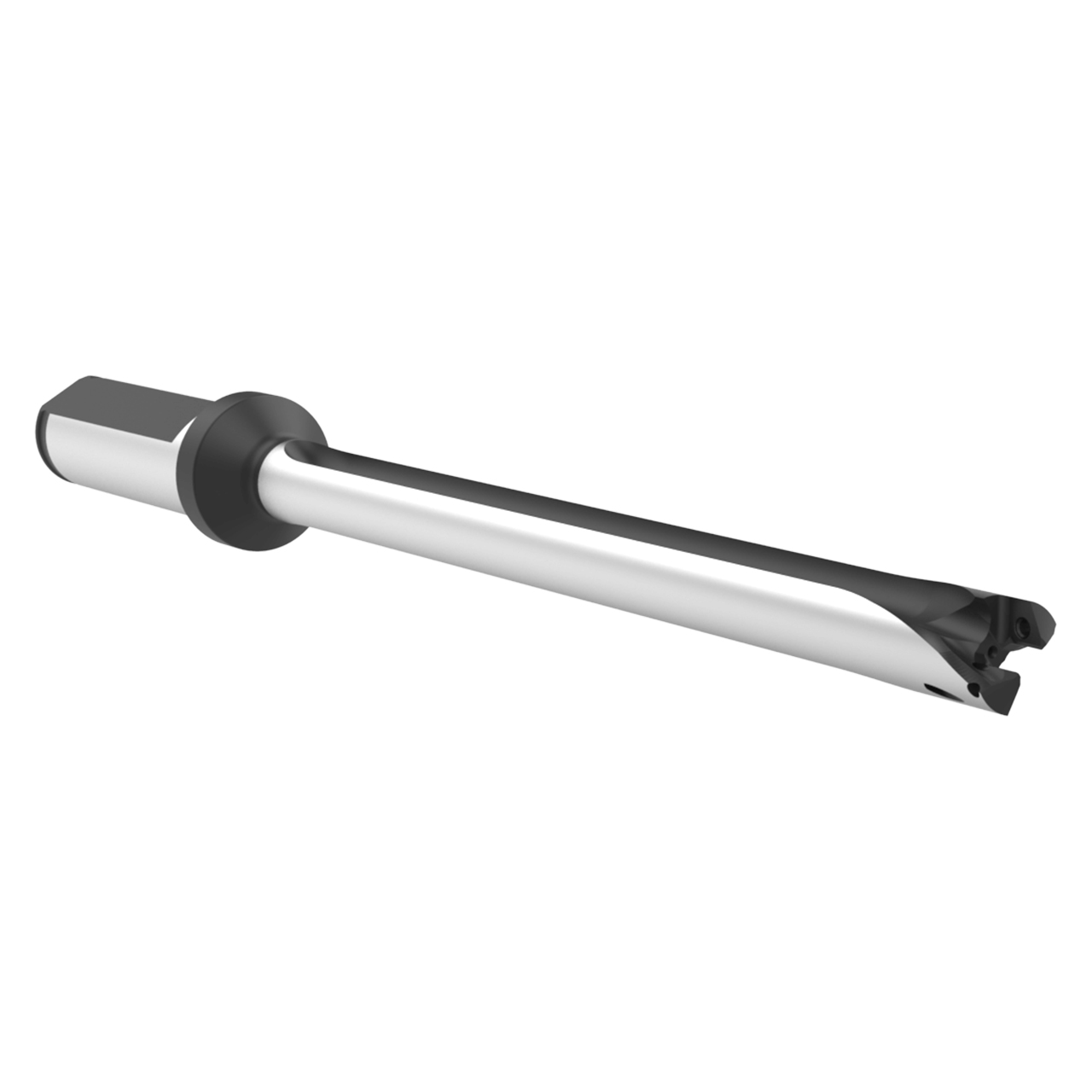

Allied Machine and Engineering HXT1011S-16FM | 11.00mm Diameter x 16.00mm Shank 10xD Flanged 11 Series Indexable Spade Drill

$429.00 $403.26
(You save $25.74)
Brand:
Allied Machine and Engineering
Series:
11
Minimum Drill Diameter (Inch):
7/16"
Minimum Drill Diameter (Decimal Inch):
0.4331"
Minimum Drill Diameter (mm):
11.00mm
Maximum Drill Diameter (Inch):
15/32"
Maximum Drill Diameter (Decimal Inch):
0.4723"
Maximum Drill Diameter (mm):
11.99mm
Shank Type:
Flanged
Flute Type:
Straight
interval quantity:
1
SKU:
23035710
UPC:
Weight:
0.34 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.

Features:

  • The XT Pro holder features an increased flute area for chip evacuation
  • The holder also has additional coolant to the cutting zone to increase insert life and drill stability

Product Specifications
# MFGHXT1011S-16FM
Body Length (Inch)5.77"
Coolant Inlet Style RearTSC
Deep HoleYes
Drill Depth (mm)119.9mm
FlatYes
Length Type10xD
Maximum Diameter (Inch)0.4723"
Maximum Diameter (mm)11.99mm
Minimum Diameter (Inch)0.4331"
Minimum Diameter (mm)11mm
Overall Length (mm)196.4mm
Series11
Shank Diameter (mm)16mm
Shank Length (mm)48mm
Shank typeFlanged
Tool Reference Length (mm)148.4mm
