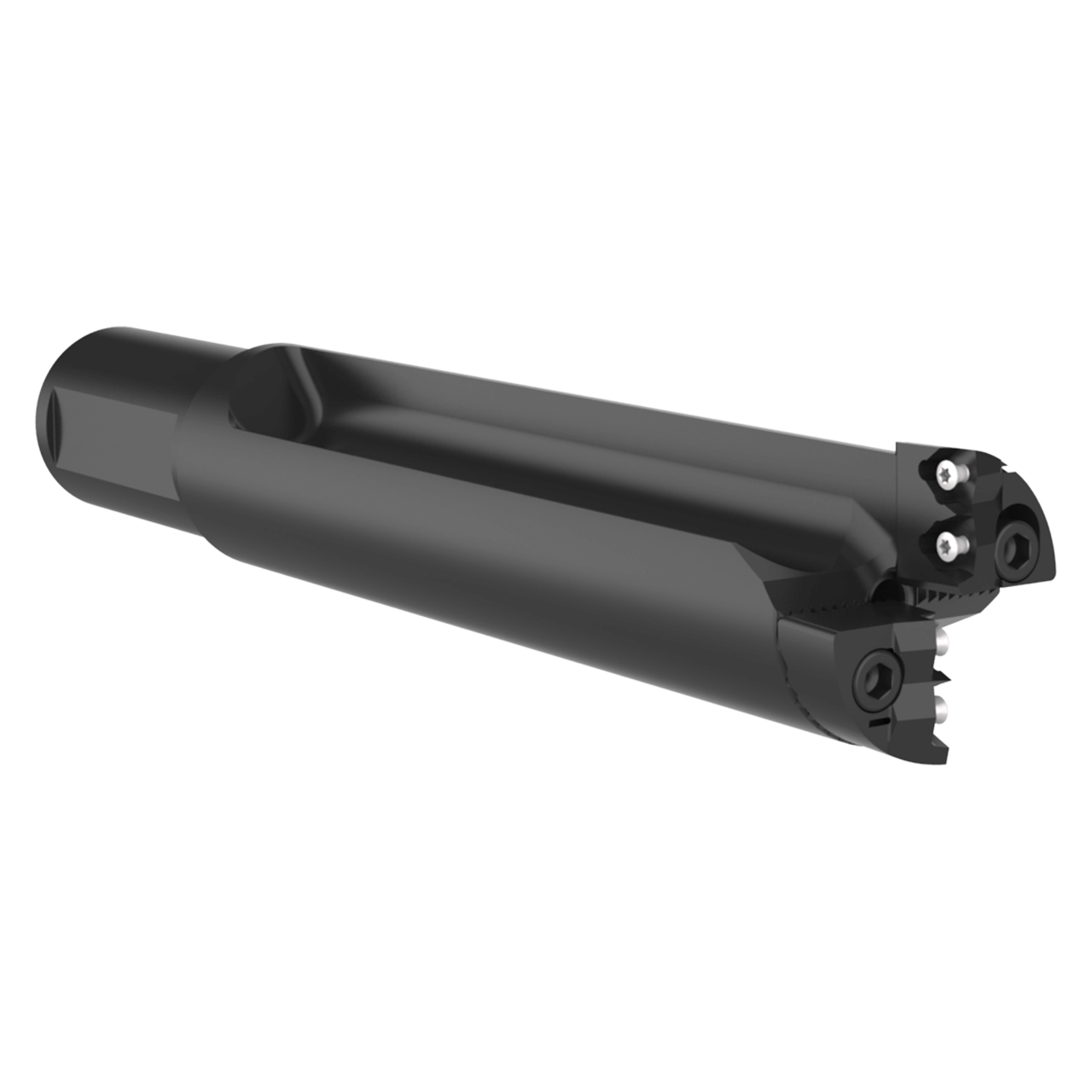

Allied Machine and Engineering R34X35-40M | 178.40mm Depth x 50.80mm Diameter x 40.00mm Shank x 3.5XD Length R34 Series Indexable Insert Drill

$932.00 $885.40
(You save $46.60)
Brand:
Allied Machine and Engineering
Drill Style:
R34
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
7-1/32"
Maximum Drill Depth (Decimal Inch):
7.0236"
Maximum Drill Depth (mm):
178.40mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3.5 X D
interval quantity:
1
SKU:
23036927
UPC:
Weight:
5.14 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGR34X35-40M
Drill depth (mm)178.40mm
Maximum Diameter (mm)50.8mm
Minimum Diameter (mm)47.6mm
Shank Diameter (mm)40.00mm
Length Type3.5 X D
Overall Length (mm)270.9mm
SeriesR34
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeStraight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
