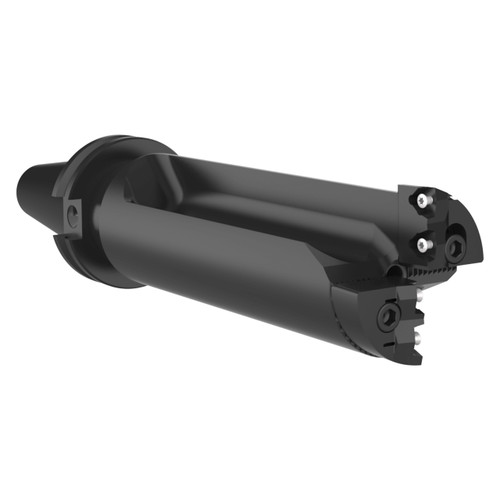

Allied Machine and Engineering R38X35-CV40 | 8-29/64" Depth x 2.400" Diameter x 3.5XD Length R38 Series Indexable Insert Drill

$1,355.00 $1,287.25
(You save $67.75)
Brand:
Allied Machine and Engineering
Drill Style:
R38
Drill Diameter (Inch):
2-13/32"
Drill Diameter (Decimal Inch):
2.4016"
Drill Diameter (mm):
60.96mm
Maximum Drill Depth (Inch):
8-29/64"
Maximum Drill Depth (Decimal Inch):
8.4531"
Maximum Drill Depth (mm):
214.70mm
Shank Type:
CV 40
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3.5 X D
interval quantity:
1
SKU:
23036902
UPC:
Weight:
8.39 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGR38X35-CV40
Drill depth (Inch)8-29/64"
Maximum Diameter (Inch)2.400"
Minimum Diameter (Inch)2.20"
Length Type3.5 X D
SeriesR38
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeCV 40
