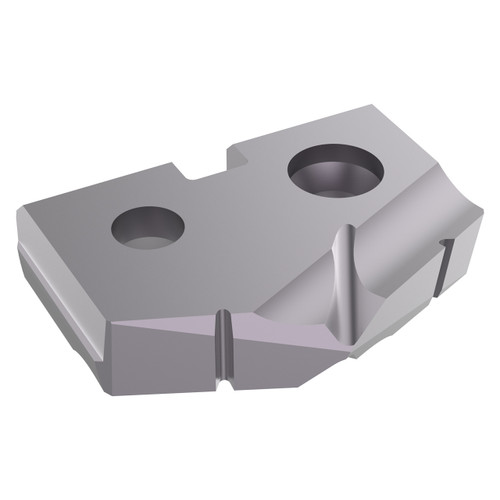

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications
| # MFG | TAN1-23.60 |
| Diameter (Decimal Inch) | 0.9291" |
| Diameter (Inch) | 59/64" |
| Diameter (mm) | 23.60mm |
| Thickness (Decimal Inch) | 0.1600" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Series | 1 |
| Included Angle | 132 Degree |
| Coating | TiCN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
1
Diameter (Inch):
59/64"
Diameter (Decimal Inch):
0.9291"
Diameter (mm):
12.60mm
Material:
Carbide
Finish/Coating:
TiCN
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1600"
Thickness (mm):
3.97mm
Included Angle:
132 Degree
interval quantity:
2
