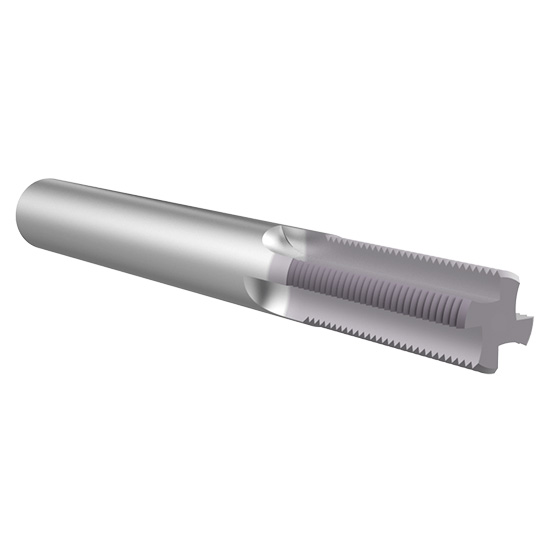

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 18
- Thread Form : BSW
Product Specifications
| #MFG | TM18BSWM |
| Thread Size (Inch) | 5/16" |
| Thread Size (Decimal Inch) | 0.3125" |
| Thread Size (mm) | 7.94mm |
| Cutter Diameter (Inch) | 13/64" |
| Cutter Diameter (Decimal Inch) | 0.1969" |
| Cutter Diameter (mm) | 5.00mm |
| Pitch (Inch) | 45/64" |
| Pitch (Decimal Inch) | 0.7100" |
| Pitch (mm) | 18.00mm |
| Shank Diameter (Inch) | 15/64" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (Decimal Inch) | 0.4445" |
| Length of Cut (mm) | 11.29mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
5/16"
Thread Size (Decimal Inch):
0.3125"
Thread Size (mm):
7.94mm
Thread Type:
Internal/External
Pitch (Inch):
45/64"
Pitch (Decimal Inch):
0.7100"
Pitch (mm):
18.00mm
Cutter Diameter (Inch):
13/64"
Cutter Diameter (Decimal Inch):
0.1969"
Cutter Diameter (mm):
5.00mm
Finish/Coating:
TiAlN
Material:
Carbide
