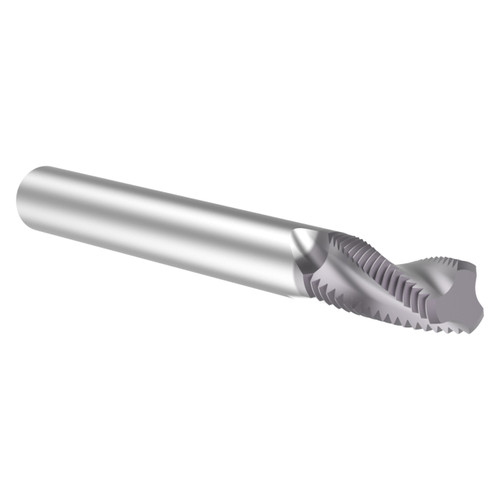

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | TM27NPSF |
| Thread Size (Inch) | 1/8" |
| Thread Size (Decimal Inch) | 0.1250" |
| Thread Size (mm) | 3.18mm |
| Cutter Diameter (Inch) | 1/4" |
| Cutter Diameter (Decimal Inch) | 0.2450" |
| Cutter Diameter (mm) | 5.95mm |
| Pitch (Inch) | 1-1/16" |
| Pitch (Decimal Inch) | 1.0600" |
| Pitch (mm) | 27.00mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6300" |
| Length of Cut (mm) | 16.00mm |
| Number of Flutes | 3 |
| Thread Type | Internal |
| Finish/Coating | TiAIN |
| Material | Carbide |
