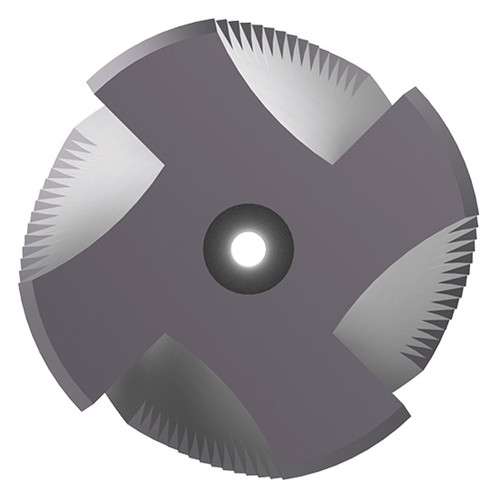

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 27
- Thread Form : NPT
Product Specifications
| #MFG | TM27NPTCHM |
| Thread Size (Inch) | 1/16" and 1/8" |
| Thread Size (Decimal Inch) | 0.0600" and 0.1300" |
| Thread Size (mm) | 1.59mm and 3.18mm |
| Cutter Diameter (Inch) | 15/64" |
| Cutter Diameter (Decimal Inch) | 0.2343" |
| Cutter Diameter (mm) | 6.22mm |
| Pitch (Inch) | 1-1/16" |
| Pitch (Decimal Inch) | 1.0600" |
| Pitch (mm) | 27.00mm |
| Shank Diameter (Inch) | 15/64" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (Decimal Inch) | 0.4449" |
| Length of Cut (mm) | 11.30mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
