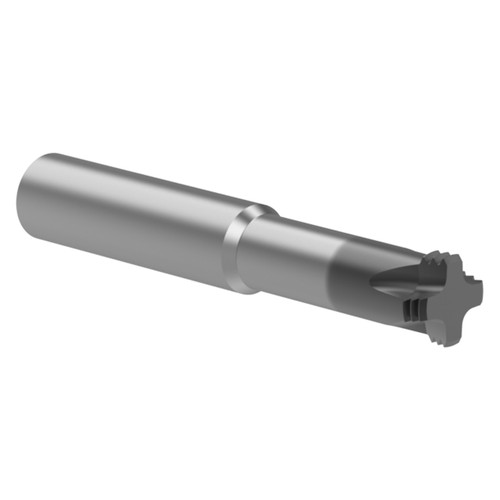

Allied Machine and Engineering TM87514M-3T2X | 7/8-14 UN x 15.748mm Diameter x 14 Pitch x 16.00mm Shank x 100.00mm OAL 4 Flute Carbide AM210 Coated Helical Flute Thread Mill

$410.80 $386.15
(You save $24.65)
Brand:
Allied Machine and Engineering
Cutter Diameter (mm):
15.75mm
Shank Diameter (mm):
16.00mm
Through Coolant:
No
Length of Cut (mm):
44.45mm
Overall Length (mm):
100.00mm
Finish/Coating:
AM210
Cutting Direction:
Left Hand (M04)
Flute Type:
Helical
Material:
Carbide
Number of Flutes:
4
Minimum Thread Size (Inch):
7/8"
Shank Type:
Cylindrical
Thread Standard:
UN
interval quantity:
1
SKU:
23164143
UPC:
Weight:
0.56 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Thread Per Inch :14

Product Specifications
# MFGTM87514M-3T2X
Cutter Diameter (mm)15.748mm
Length of Cut (mm)44.45mm
Overall Length (mm)100mm
Shank Diameter (mm)16.00mm
Minimum Thread Size7/8"
Number of Flutes4
Pitch14
Cutting DirectionLeft Hand (M04)
Depth to Diameter2X
Shank TypeCylindrical
Thread StandardUN
Coolant ThroughNo
CoatingAM210
MaterialCarbide
Flute TypeHelical
