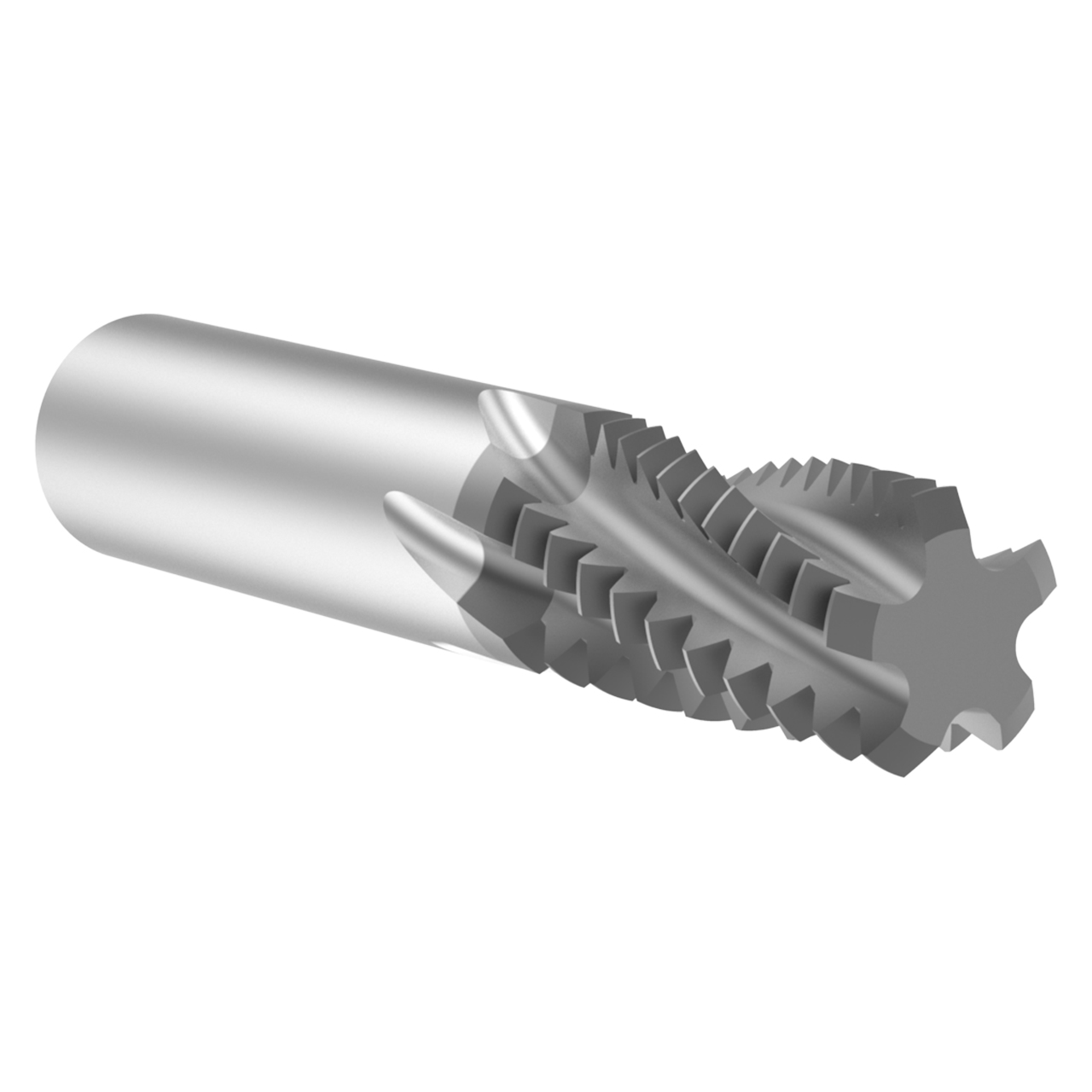

AccuThread 856 Solid Carbide is Allied's premium threadmilling product range, manufactured from micro grain carbide and coated in AM210 premium coating. This product is designed for the demanding environment of high production threadmilling.
Features:
- Allied's proprietary AM210 coating has a 25-50% increase in tool life
- Standard cutting lengths allow for multiple applications without the need for special thread mills
- Helical flute which offers increased strength and rigidity
- Thread Per Inch : 4
Product Specifications
| # MFG | TMMK3600-400M |
| Cutter Diameter (mm) | 19.90mm |
| Length of Cut (mm) | 40.00mm |
| Overall Length (mm) | 105.00mm |
| Shank Diameter (mm) | 20.00mm |
| Minimum Thread Size (Inch) | M36 |
| Pitch | 4 |
| Thread Standard | ISO |
| Thread Style | Internal/External |
| Coating | AM210 |
| Material | Carbide |
| Flute Type | Helical |
| Number of Flutes | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (mm):
M36
Thread Type:
Internal/External
Cutter Diameter (Inch):
25/32"
Cutter Diameter (Decimal Inch):
0.7835"
Cutter Diameter (mm):
19.90mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Number of Flutes:
5
Length of Cut (Inch):
1-37/64"
Length of Cut (Decimal Inch):
1.5748"
Length of Cut (mm):
40.00mm
Finish/Coating:
AM210
Material:
Carbide
