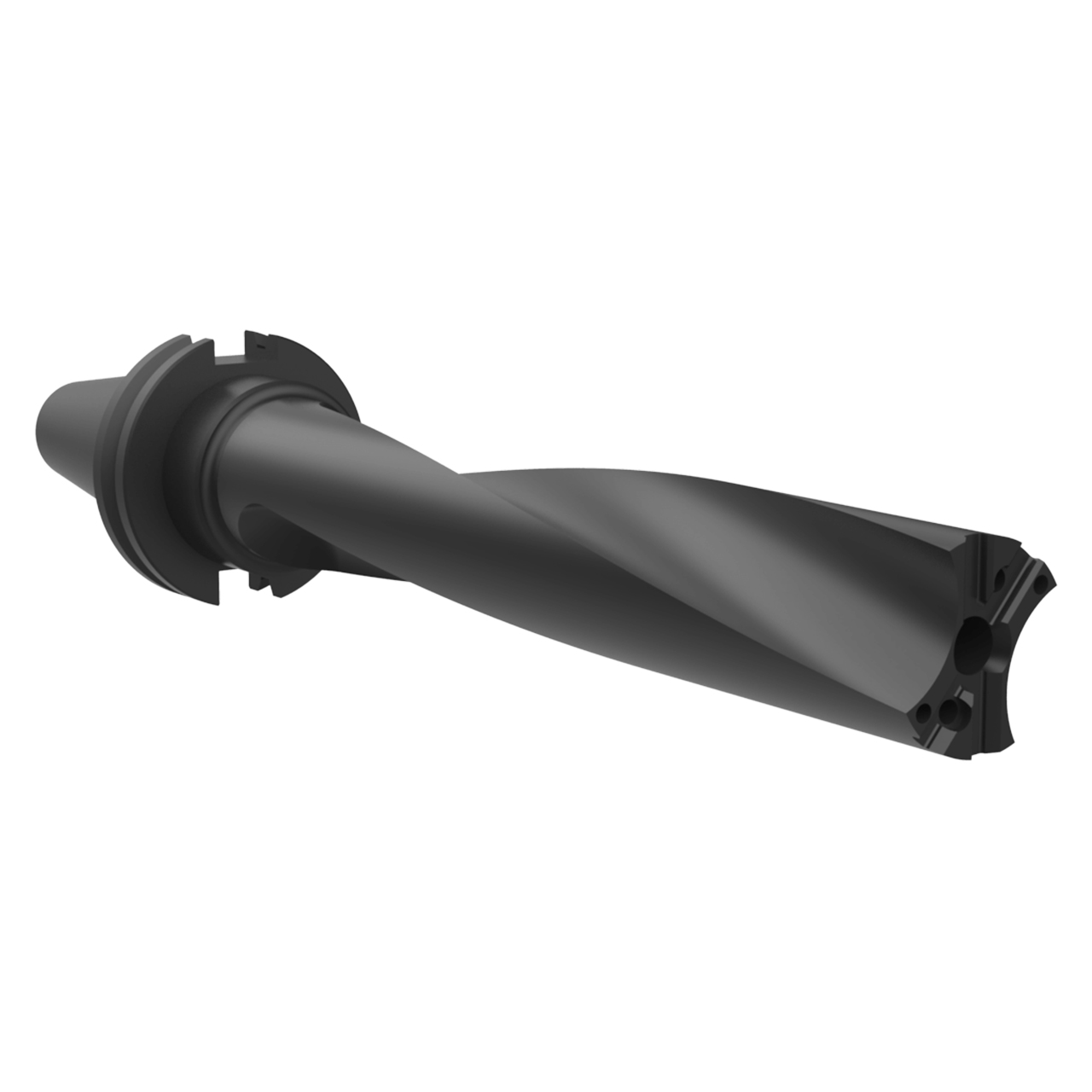

Allied Machine and Engineering W3305H-CV40 | 1.496" Diameter x 7.420" Drill Depth 33 Series CV 40 Indexable Drill Body

$1,174.00 $1,115.30
(You save $58.70)
interval quantity:
1
SKU:
23030641
UPC:
Weight:
4.17 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.

Features:

  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength

Product Specifications
# MFGW3305H-CV40
Assembled Overall Length (Inch)13-11/64"
Assembled Reference Length (Inch)10-23/64"
Assembled Reference Length (mm)243.4mm
Drill Depth (Inch)7-27/64"
Maximum Diameter (Inch)1.4960"
Minimum Diameter (Inch)1.2992"
Minimum Diameter (mm)33.00mm
Series33
Shank TypeCV 40
Length Type5xØ
Coolant Inlet Style RearThrough the Shank
Flute TypeHelical
