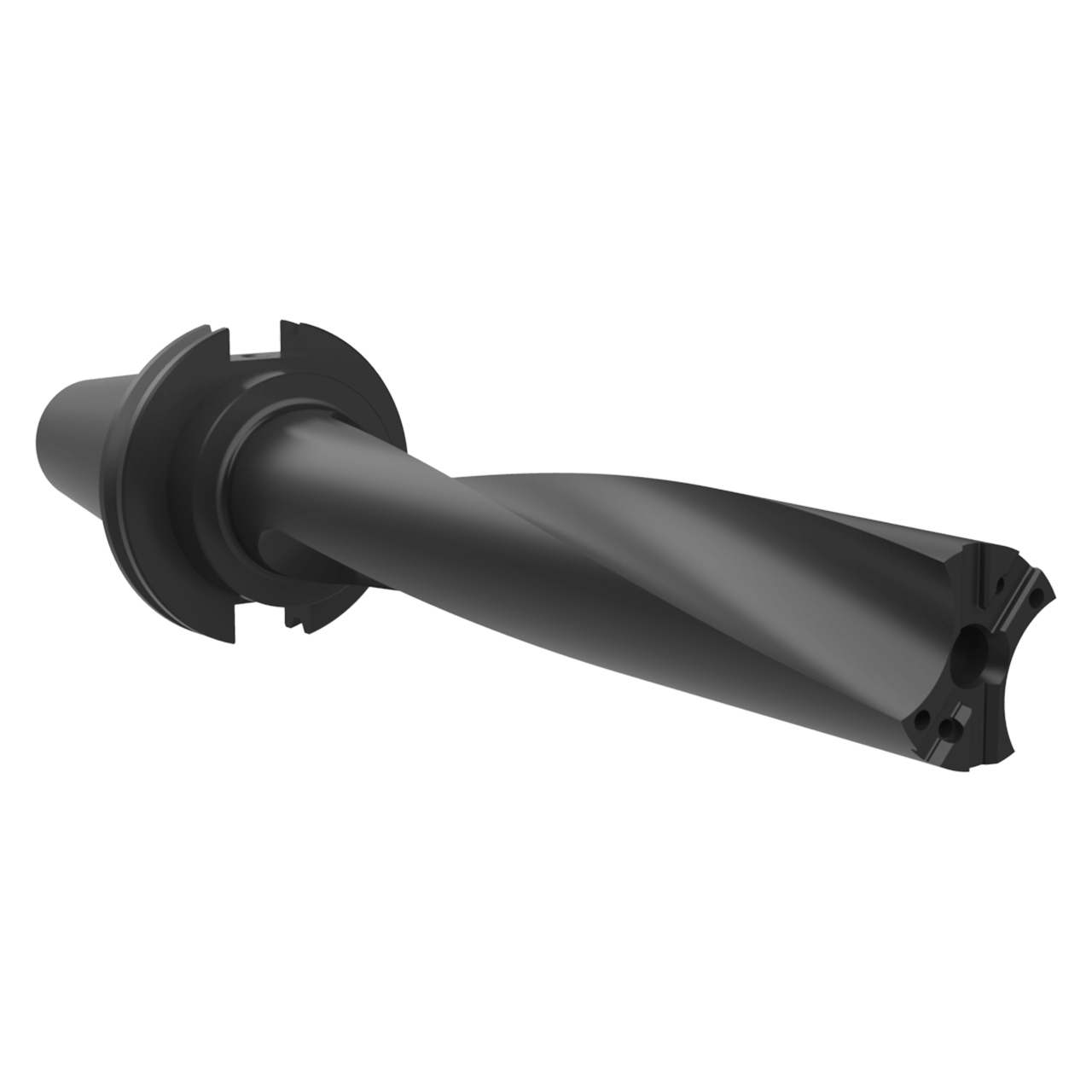

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.
Features:
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength
Product Specifications
| # MFG | W5105H-CV50 |
| Assembled Overall Length (Inch) | 18-7/32" |
| Assembled Reference Length (Inch) | 14-7/32" |
| Assembled Reference Length (mm) | 339.6mm |
| Drill Depth (Inch) | 11-1/4" |
| Maximum Diameter (Inch) | 2.2438" |
| Maximum Diameter (mm) | 56.99mm |
| Minimum Diameter (Inch) | 2.0076" |
| Minimum Diameter (mm) | 51.00mm |
| Series | 51 |
| Shank Type | CV 50 |
| Length Type | 5xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Flute Type | Helical |
