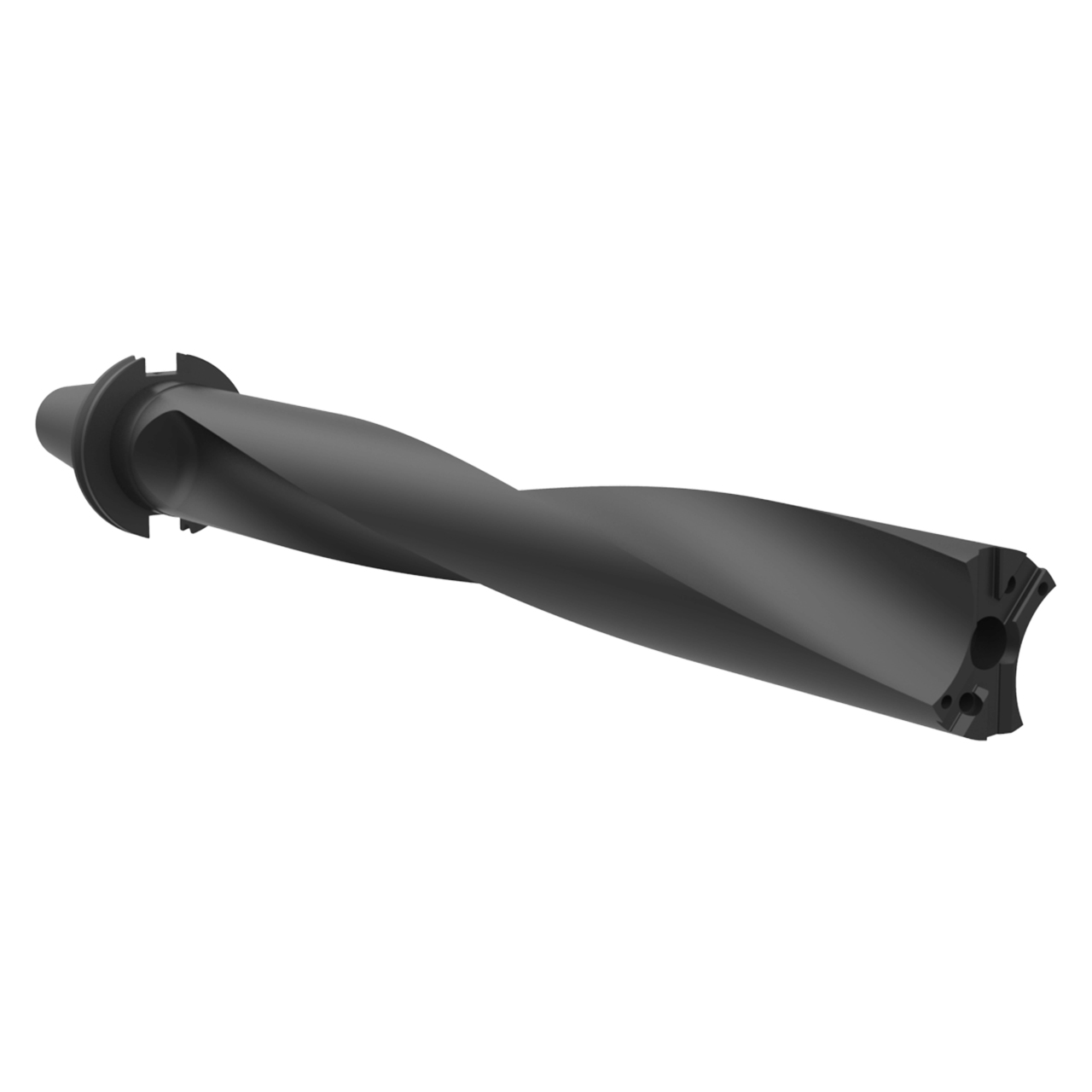

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.
Features:
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength
Product Specifications
| # MFG | W7008H-CV50 |
| Assembled Overall Length (Inch) | 31-5/32" |
| Assembled Reference Length (Inch) | 27-5/32" |
| Assembled Reference Length (mm) | 649mm |
| Drill Depth (Inch) | 23-7/8" |
| Maximum Diameter (Inch) | 2.9917" |
| Maximum Diameter (mm) | 75.99mm |
| Minimum Diameter (Inch) | 2.7556" |
| Minimum Diameter (mm) | 70.00mm |
| Series | 70 |
| Shank Type | CV 50 |
| Length Type | 8xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Flute Type | Helical |
