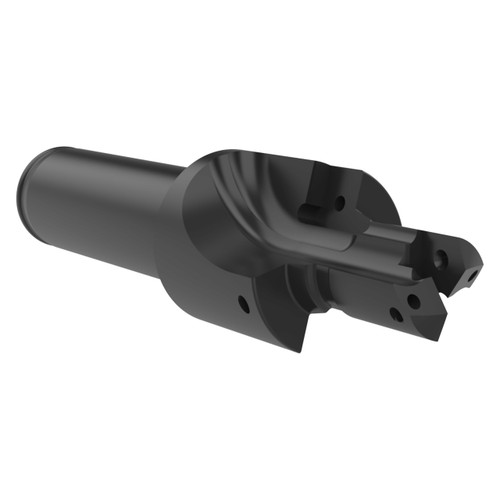

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | X1926-04Y-063F |
| Pilot Diameter (Inch) | 0.386" |
| Pilot Diameter (mm) | 9.8mm |
| Spotface Diameter (Inch) | 0.84" |
| Spotface Diameter (mm) | 21.3mm |
| Shank Diameter (Inch) | 0.625" |
| Shank Diameter (mm) | 15.9mm |
| Seal Angle Diameter (Inch) | 0.49" |
| Seal Angle Diameter (mm) | 12.5mm |
| Overall Length (Inch) | 3.65" |
| Overall Length (mm) | 92.8mm |
| Seal Angle Length (Inch) | 0.106" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.801" |
| Pilot Length (mm) | 20.3mm |
| Shank Length (Inch) | 1.875" |
| Shank Length (mm) | 47.6mm |
| Spotface to Shoulder Length (Inch) | 0.896" |
| Spotface to Shoulder Length (mm) | 22.8mm |
| Seal Angle | 12 Degree |
| Series | Y |
| Tube Size | -4 |
| Port Standard | SAE J-1926 |
| Port Thread Size | 7/16-20 UNF-2B |
| Shank Type | Cylindrical |
| Pipe Tap Rear (Inch) | 1/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE J-1926
Port Thread Size:
7/16-20 UNF-2B
Tube Dash Number:
-4
Pilot Diameter (Inch):
25/64"
Pilot Diameter (Decimal Inch):
0.3860"
Pilot Diameter (mm):
9.80mm
Spotface Diameter (Inch):
27/32"
Spotface Diameter (Decimal Inch):
0.8400"
Spotface Diameter (mm):
21.30mm
Pilot Length (Inch):
51/64"
Pilot Length (Decimal Inch):
0.8010"
Pilot Length (mm):
20.30mm
