Features
- Protection level IP65
- Ratchet Stop
- Additional extensions can be added to increase the measuring depth (over 6mm/0.275")
- Measuring contact points are designed to allow measurements near to the bottom of blind holes
- With Setting Rings, S-Wrench, Screwdriver, Warranty Card, Instruction Manual, Calibration Certificate
Product Specifications
| Manufacturer Part Number | 7209291 |
| Type | Internal |
| Minimum Measurement (Decimal Inch) | 1.6" |
| Maximum Measurement (Decimal Inch) | 2" |
| Graduation (Decimal Inch) | 0.0002" |
| Thimble Type | Ratchet Stop |
| Accuracy (Decimal Inch) | ±0.00016" |
| Number of Contact Points | 3 |
| Number of Setting Rings Included | 2 |
| Digit Counter | No |
| Setting Ring Diameter (Decimal Inch) | 1.6" |
| Extension Rod Length (mm) | 150mm |

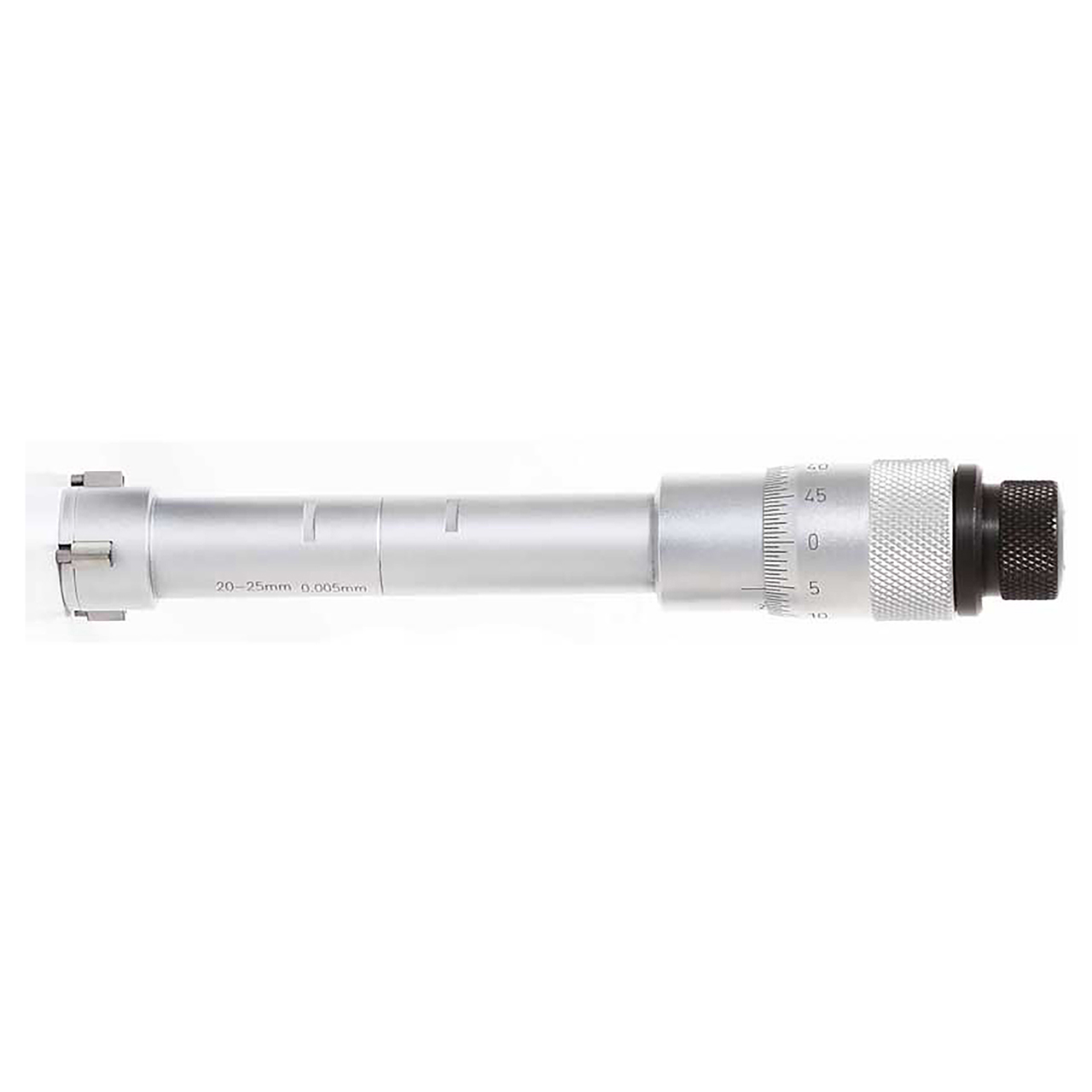

| Product Type | Mechanical Inside Micrometer |
