Features
- Easy to read dial face with jeweled movement
- 1.61"/42mm dial face
- Flat back (attached) and lug back supplied, Warranty card, Instruction manual
Product Specifications
| Manufacturer Part Number | 7402101 |
| Maximum Measurement (mm) | 10mm |
| Dial Graduation (mm) | 0.01mm |
| Dial Reading | 0-100 |
| Dial Color | Yellow |
| Dial Diameter (Inch) | 2-1/4" |
| Accuracy (mm) | ±0.03mm |
| Back Type | Flat Back (Lug Supplied) |
| Range Per Revolution (mm) | 1mm |
| Thread Size (Inch) | #4-48 |
| Stem Diameter (Inch) | 3/8" |

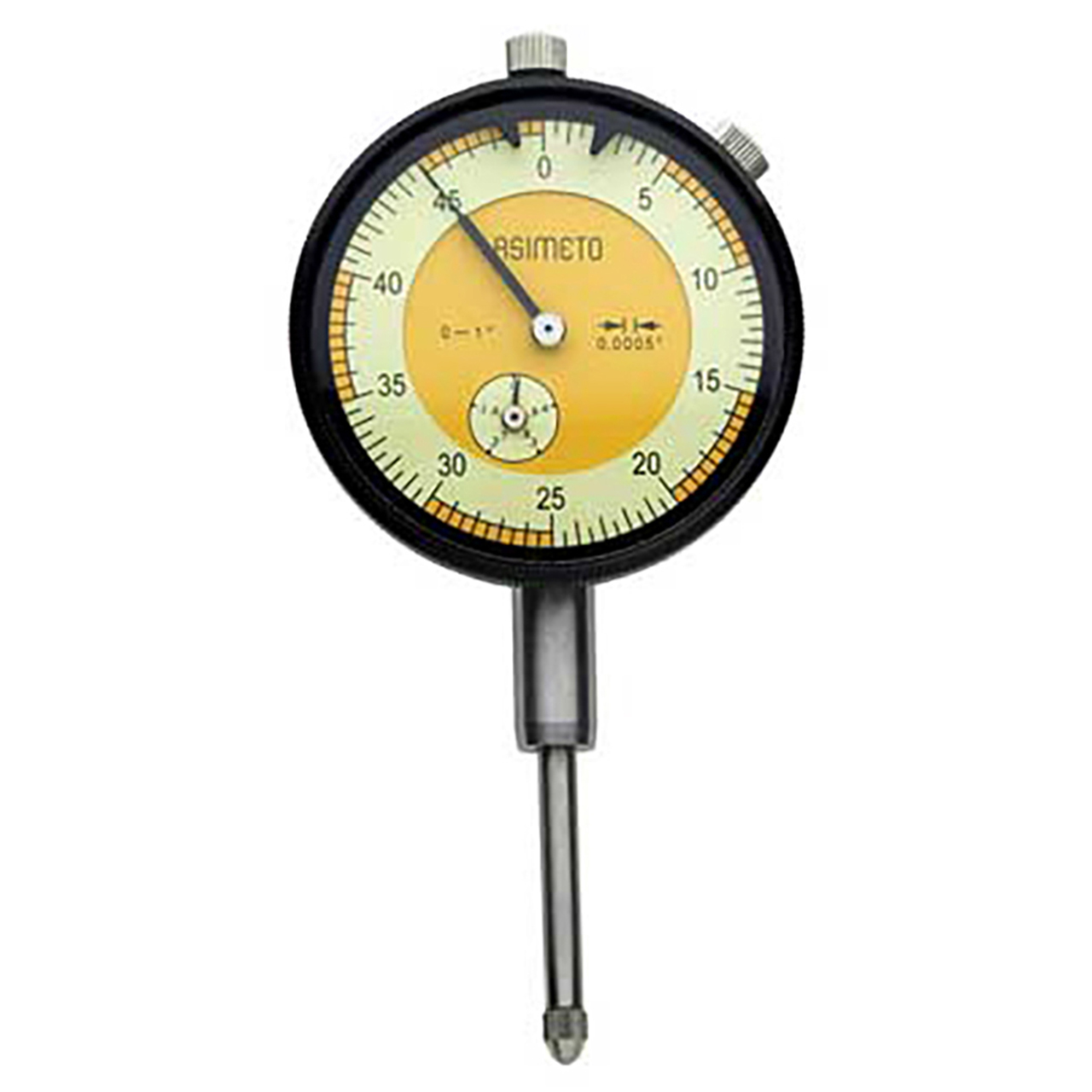

| Product Type | Dial Drop Indicator |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Asimeto
Maximum Measurement (Inch):
25/64"
Maximum Measurement (Decimal Inch):
0.3937"
Maximum Measurement (mm):
10.00mm
Dial Graduation (Decimal Inch):
0.0100"
Dial Reading:
0-100
Dial Diameter (Inch):
2-1/4"
Dial Diameter (Decimal Inch):
2.2500"
Dial Diameter (mm):
57.15mm
Dial Color:
Yellow
Accuracy (Decimal Inch):
±0.0300"
