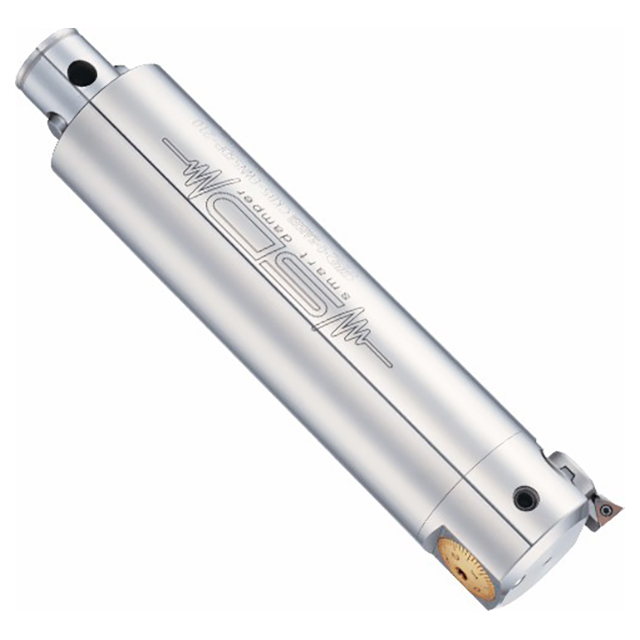

Product Specifications
| Catalog Number | CKB5-EWN53EDP-210 |
| Boring Head Diameter (mm) | 50.00mm |
| Gage Length (mm) | 210.00mm |
| Front Minimum Bore Diameter (mm) | 53.00mm |
| Front Maximum Bore Diameter (mm) | 95.00mm |
| Back Minimum Bore Diameter (mm) | 74.00mm |
| Back Maximum Bore Diameter (mm) | 95.00mm |
| Boring Head Body Length (mm) | 206.00mm |
| Back Boring Gage Length (mm) | 172.00mm |
| Connection Type | CKB |
| Connection Size | 5 |
| Dial Scale | Imperial |
| Boring Head Series | EWN53 |
| Smart Damper Technology | TRUE |
| Product Type | Boring Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Big Daishowa
Big Daishowa EWN53-95E-CKB5 | 49.00mm Diameter x 57.00mm Length EWN53 Boring Head
$1,213.00
Big Daishowa

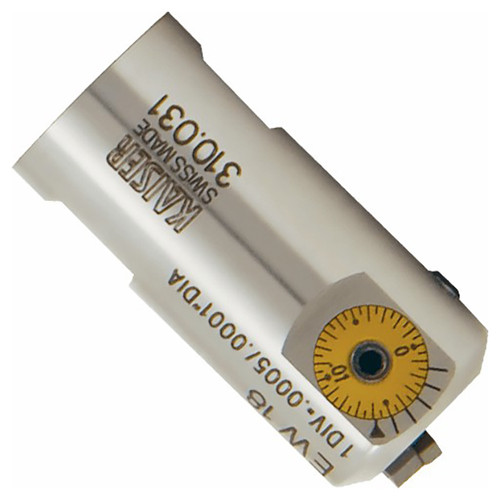

Big Daishowa 10.310.701 | 90.00mm Diameter x 87.00mm Length EWN100 Boring Head
