| Catalog Number | FONBC10-4AA |
| Length (mm) | 27.00mm |
| Nominal Clamping Size (mm) | 4.00mm |
| Straight Collet Clamping OD (mm) | 16.50mm |
| Minimum Clamping Length (mm) | 23.00mm |
| Minimum Clamping Range (Inch) | 0.1540" |
| Minimum Clamping Range (mm) | 3.90mm |
| Maximum Clamping Range (Inch) | 0.1570" |
| Maximum Clamping Range (mm) | 4.00mm |
| Collet Series | NBC10 |
| Sealed Coolant Capability | Yes |
| Jet Coolant Capability | No |
| Tapping Capability | No |

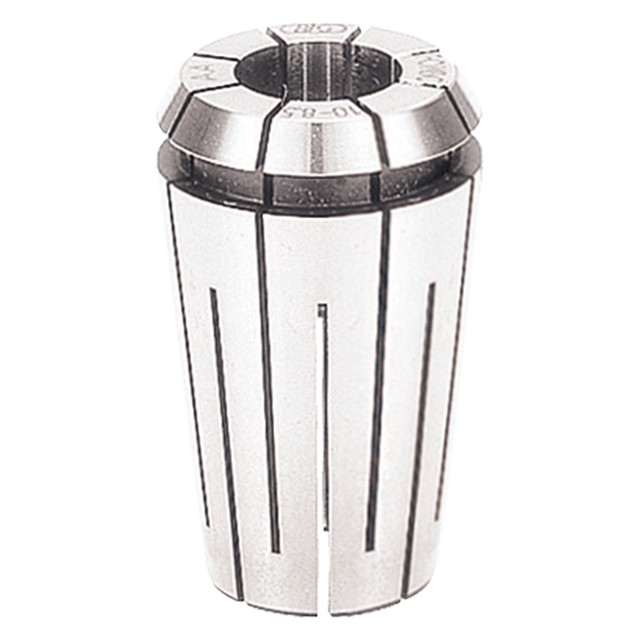

| Product Type | ER Collet |
