Description
| # Manufacturer Number | AED-2500-6 |
| Cutting Diameter (Inch) | 0.2500" |
| Cutting Diameter (mm) | 6.35mm |
| Cutting Diameter (Fractional Inch) | 1/4" |
| Flute Length (Inch) | 2.7500" |
| Flute Length (mm) | 69.85mm |
| Flute Length (Fractional Inch) | 2-3/4" |
| Overall Length (mm) | 152.40mm |
| Overall Length (Fractional Inch) | 6" |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Series | 8466 |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |

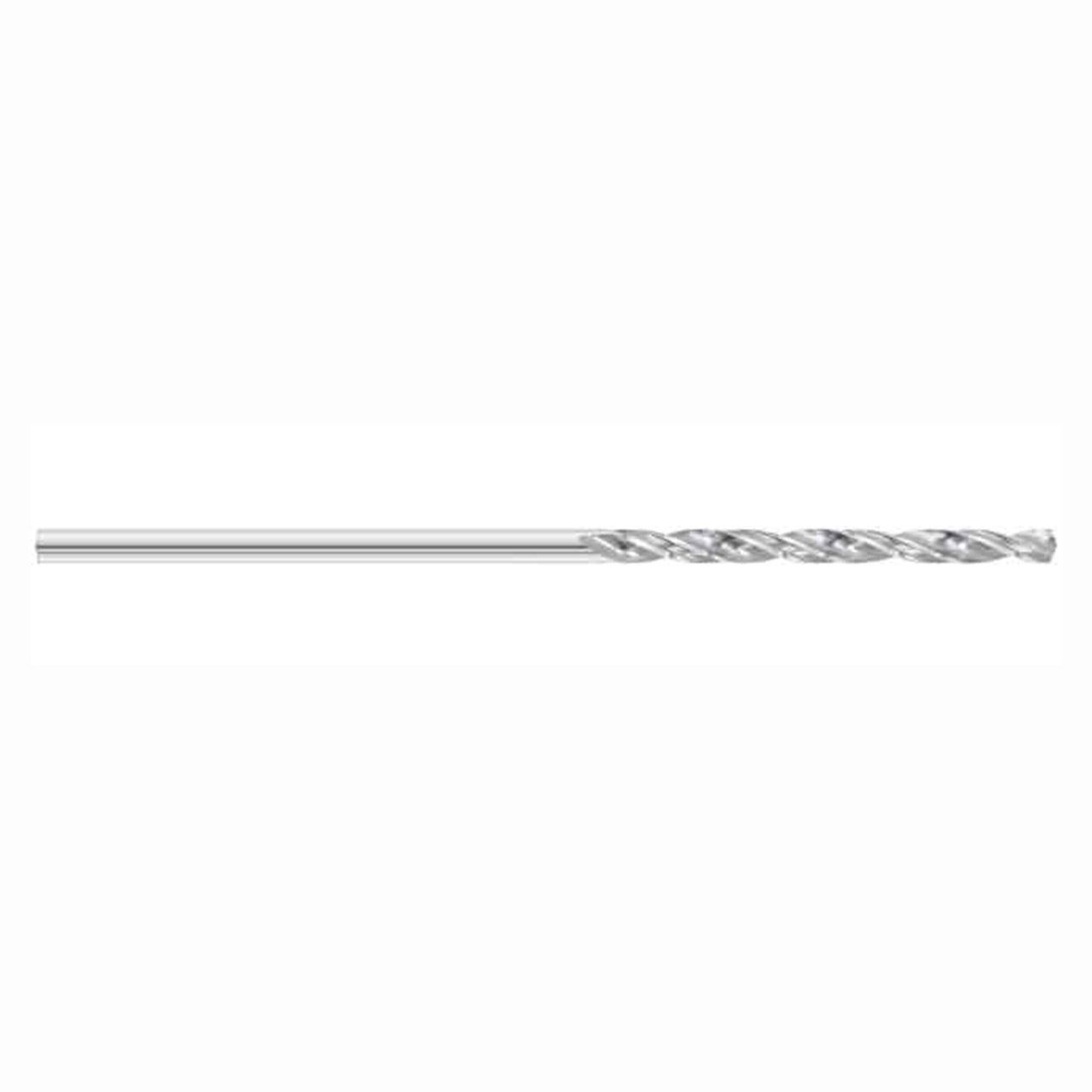

| Aircraft Extension Drill | Aircraft Extension Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carbro
Drill Bit Size (Inch):
1/4"
Drill Bit Size (Decimal Inch):
0.2500"
Drill Bit Size (mm):
6.35mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
2-3/4"
Flute Length (Decimal Inch):
2.7500"
Flute Length (mm):
69.85mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Coolant Through:
No
