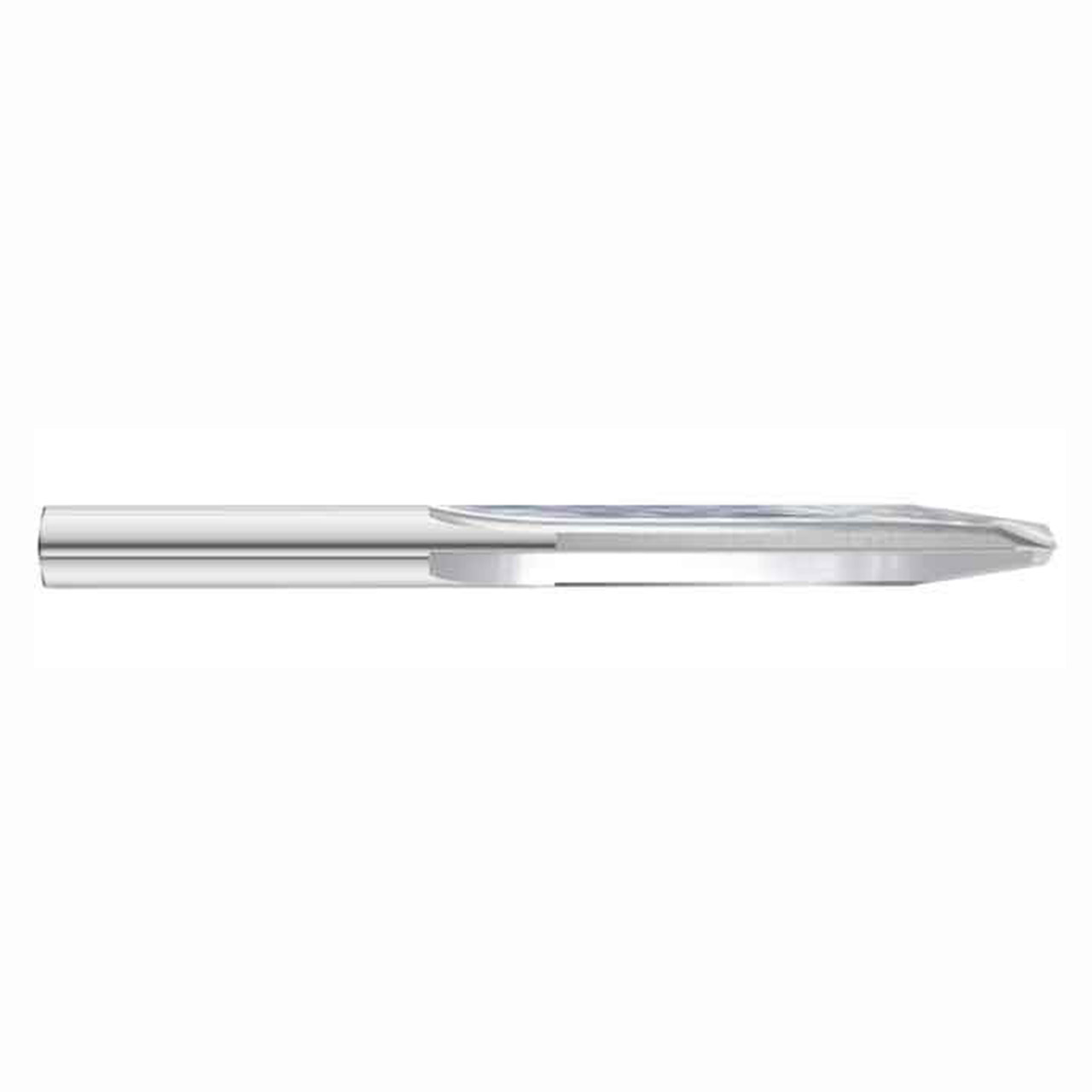

Carbro DR-2010-3 | 0.2010" Diameter x 1.7500" Flute Length x 3" OAL 4 Flute Solid Carbide Drill Reamer

$28.90
SKU:
10233639
Weight:
0.23 LBS
Shipping:
Calculated at Checkout

The Carbro 3" Drill Reamer is a 3" length tapered drill reamer, its elongated double-angle geometry eliminates thrust and exit side delamination. This tool can be used for hand drilling, robot, or CNC and excels in fiberglass, CFRP, CFRP/Nomex, GFRP/Nomex, CFRP/Al, Al, Al/Al, Carbon/Carbon, and graphite. The Carbro 3" Drill Reamer has 4-flutes and 118 degree point. Get started with the Carbro 3" Drill Reamer today!

Features:

  • Carbro’s 3" Drill Reamer eliminates thrust and exit side delamination in composites

Product Specifications
# Manufacturer NumberDR-2010-3
Cutting Diameter (Inch)0.2010"
Cutting Diameter (mm)5.11mm
Flute Length (Inch)1.7500"
Flute Length (mm)44.45mm
Flute Length (Fractional Inch)1-3/4"
Overall Length (mm)76.2mm
Overall Length (Fractional Inch)3"
Point Angle (Degree)118 Degree
Number of Flutes4
Series8213
Spiral DirectionRight Hand
Cutting DirectionRight Hand
Product TypeDrill Reamer
