Carr Lane CL-0-SFC | Screw Size 5/16"-18 Serrated Fixed Edge Clamp

SKU: 50017491 Weight: 0.30 LBS Minimum Purchase: 1 unit
UPC:
$79.26
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

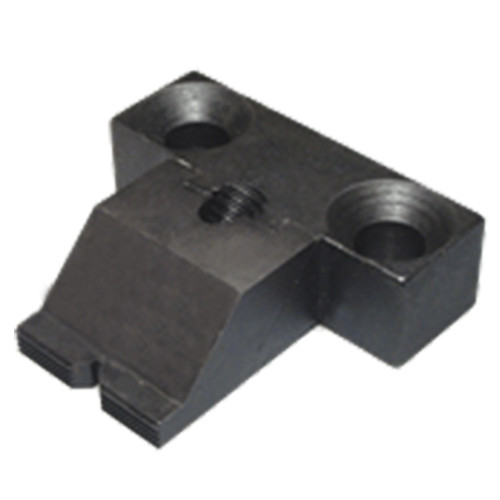

Serrated Fixed Edge Clamp

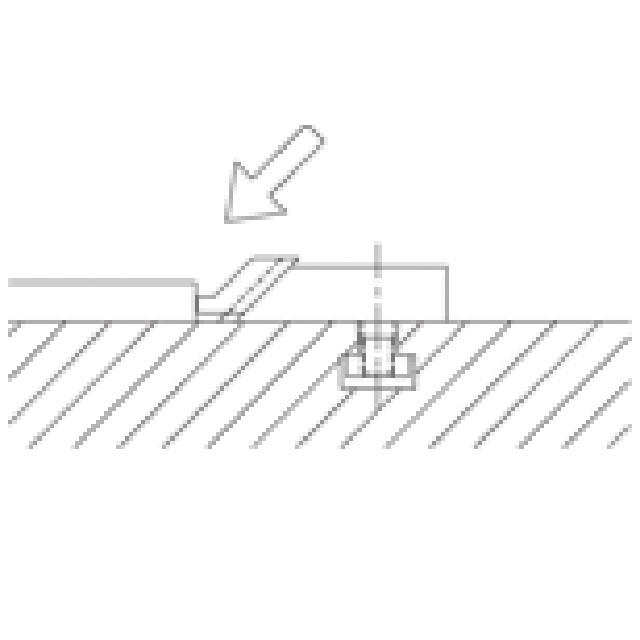

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45ยฐ angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding nose with a hex wrench. V-groove in nose is useful for clamping round parts or corners. The fixed edge clamps are ideal for permanent fixtures, because they have two fixed mounting holes instead of a slot. This allows the clamp to be more compact, and ensures correct position without adjustment. The Flat-Head Socket Screws used for mounting absolutely prevent slippage (order separately). Made in USA.

Low-Nose Version

The low-nose version is ideal for thin parts and other applications where extra machining clearance is required.

Material

Item Material Heat Treat Finish RoHS
Body and Nose 1018 Steel Carburized Hardened Black Oxide Yes Yes
Clamping Screw 4140 Steel Heat Treated Rc 43-45 Black Oxide Yes Yes

Parts Specification

Mounting Screw SizeABCDEFKLMNPQ
5/16-181-27/325/8111-3/411/161/41-5/165/321/81/81-1/2
