Carr Lane CL-70-SFC | 5/8-11" Thread Serrated Fixed Edge Clamp

$93.62
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50017495
UPC:
Weight:
2.12 LBS
Shipping:
Free Shipping

Serrated Fixed Edge Clamps

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The fixed version can be used on some modular fixtures, but is usually best for permanent fixtures because it mounts in a fixed position rather than having a slot for adjustment. This allows the clamp to be more compact, and ensures correct position without adjustment. Made in USA.The Serrated Adjustable Edge Clamps are for Heavy System MF50 (5/8-11 mounting screws).

High-Nose Version

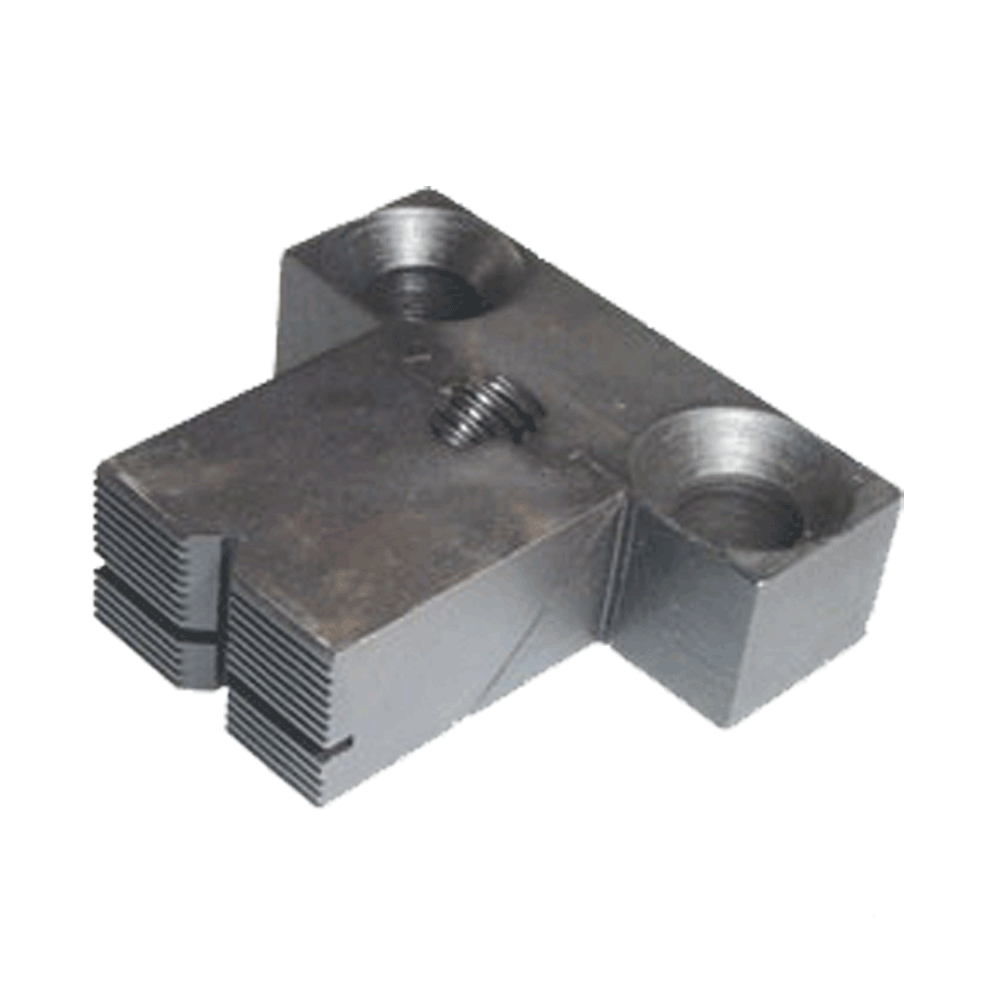

The high-nose version shown here is best for most applications-gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.

Low-Nose Version

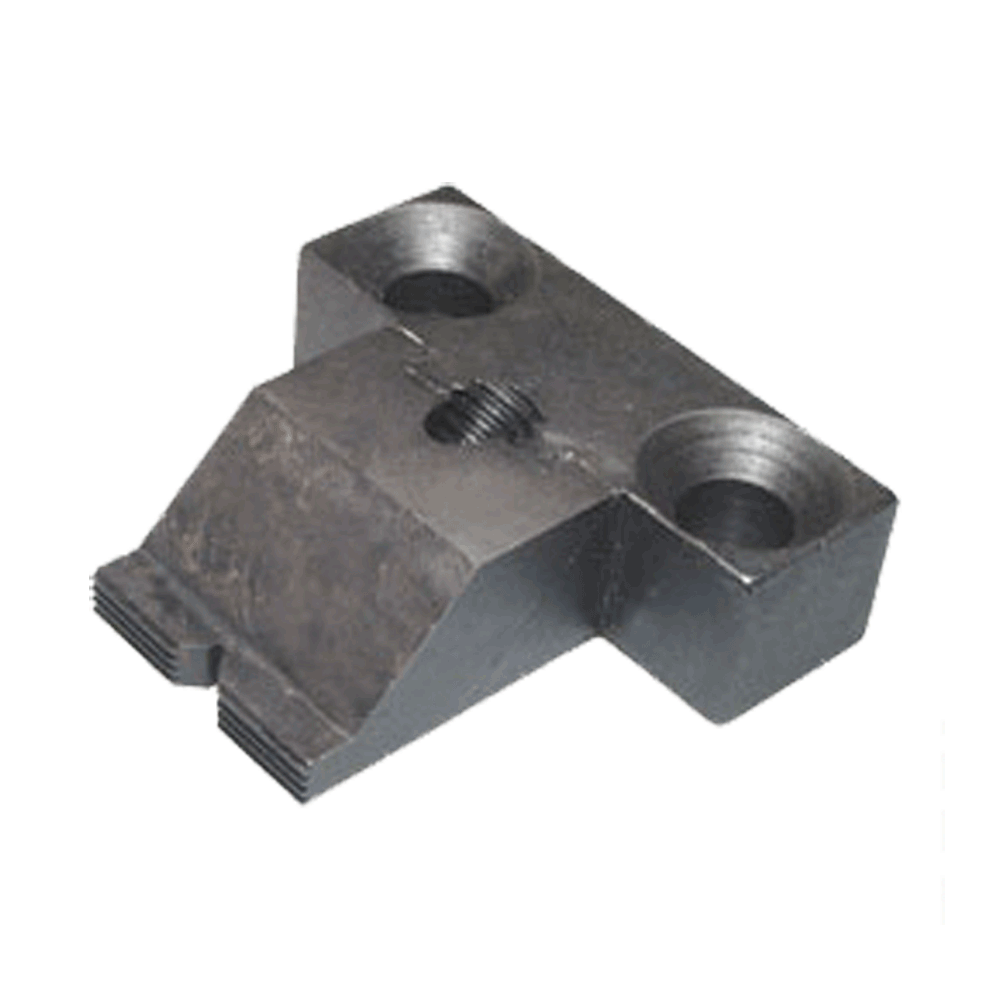

The low-nose version shown here is ideal for thin parts and other applications where extra machining clearance is required.

Material

Item Material Heat Treat Finish DFARS RoHS
Body and Nose 1018 Steel Carburized Hardened Black Oxide
Clamping Screw 4140 Steel Heat Treated Rc 43-45 Black Oxide

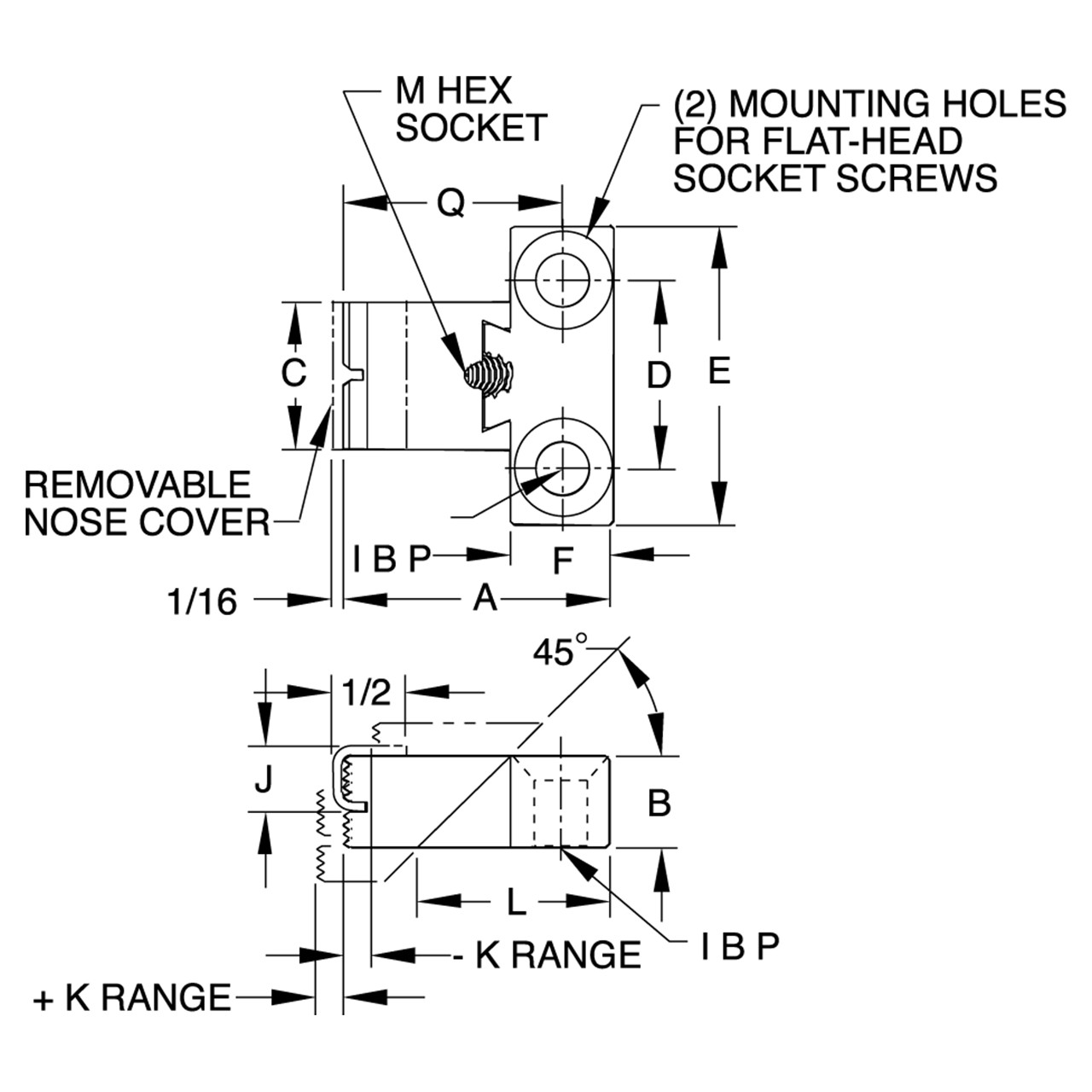

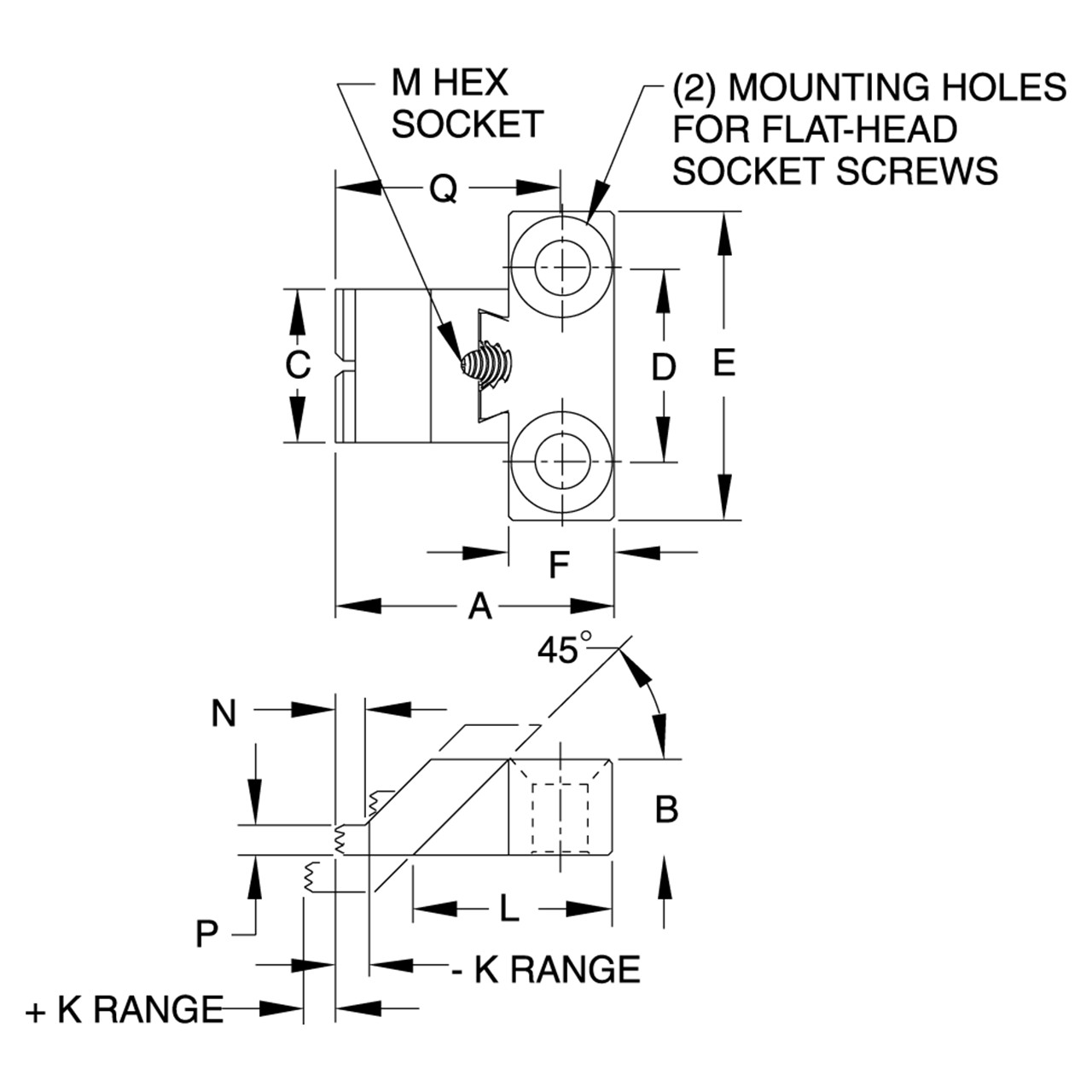

Parts Specification

Mounting Screw SizeABCDEFJKLMNPQ
5/8-11"3-1/2"1-1/41-3/42"3-1/4"1-1/4"3/4"5/16"2-1/2"5/16"5/16"3/8"2-7/8"
