Double-End Clamp Straps
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

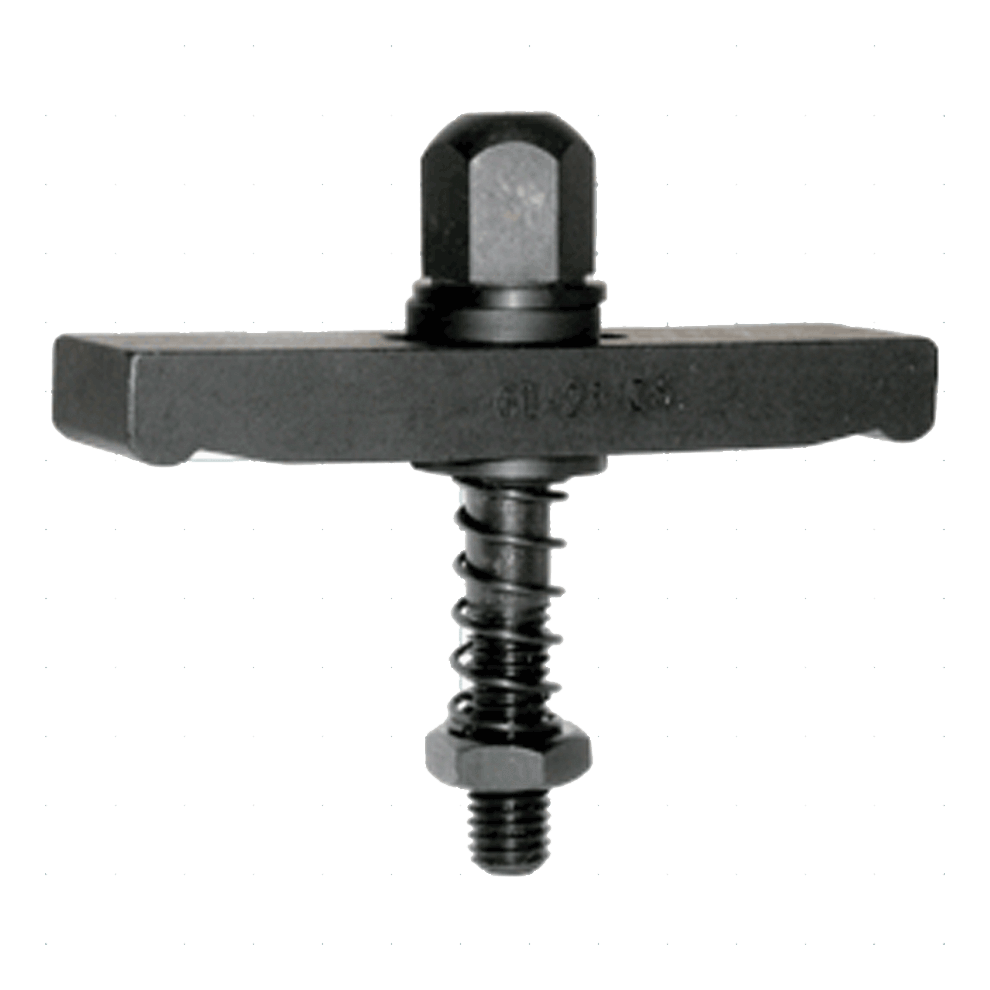

Assembly with Acorn Nut & Spherical Washer (-5)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Acorn Nut
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | A (Inch) | B (Inch) | C (Inch) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Acorn Nut | Spherical Washer |
| 1/4-20 | 2-1/2" | 5/8" | 3/8" | CL-23B-CS | CL-5-SPG | CL-7-FW | CL-1/4-20x2.50-STUD | CL-4-JN | CL-0-AN | CL-1-SW |
